with Operating Elements / Operation with Key, Lockable

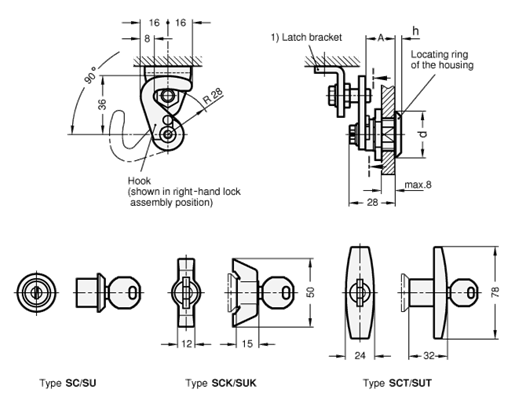

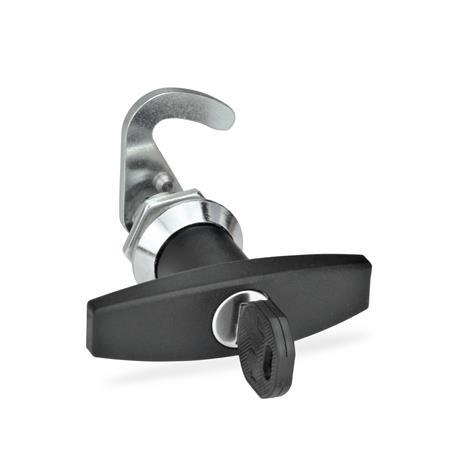

GN 115.8 Hook-Type Latches

Type

SC	Operation with key (same lock)
SU	Operation with key (different lock)
SCK	Operation with wing knob (same lock)
SUK	Operation with wing knob (different lock)
SCT	Operation with T-Handle (same lock)
SUT	Operation with T-handle (different lock)

Version of the hook

H1	Pivoting radius R=28

Identification no.

1	Without latch bracket
2	With latch bracket

Show filter

Hook distance A	d Type SG, RG, KG, HG	Type SK, ST	h Type SG, RG, KG, HG	Type SK, ST

18	28	32	4	6

Filter combination produces no result.

1) Dimensions of the latch bracket see PDF for "Construction and assembly instructions"

Specification

Lock housing
Zinc die casting

Housing collar

Chrome platedCR
Powder coated
Black, RAL 9005, textured finishSW

Other parts
Steel zinc plated, blue passivated

Key
Nickel silver with plastic handpiece

Wing knob / T-handle
Plastic (Polyamide PA)
Black, matte finish

Plastic Characteristics

RoHS

Accessory

Socket Keys 119.2

Protective Caps GN 120

Opening Handles GN 120.1

On request

Hook-type latches with other hook distance A

Hook with other pivoting radius R

Information

Hook-type latches GN 115.8 with hook and latch bracket are mainly used for sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.

The latches are delivered with 2 keys and loosely enclosed hook. The key can be removed in both end positions.

Types with a standard lock allow every lock to be opened with the same key. For the types with different lock, there are more than 200 different lock variants, whose keys are marked by numbers.
