Consisting of Three Parts

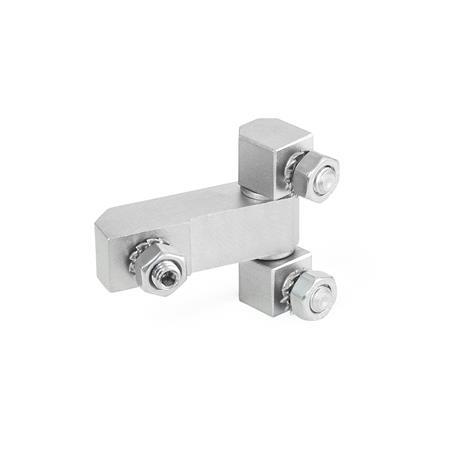

GN 129.2 Stainless Steel Hinges
Type
| C | Mounting from the back |
| l1 | l2 | b | d1 | d2 Pin | h1 | h2 | l3 | l4 max. | l5 | l6 | l7 | m1 | m2 | s | t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 40 | 13 | M 6 | 6 | 13 | 13,5 | 18 | 6 | 11 | 5 | 10 | 30 | 28,2 | 12 | 9 |
| 50 | 51 | 18 | M 8 | 8 | 18 | 18 | 26 | 8 | 14 | 8 | 14 | 29 | 35 | 16 | 11 |
Filter combination produces no result.
Specification
Hinge body, pin, washer
Hexagon nut ISO 4032
Stainless steel AISI 304
Serrated washer DIN 6797
for securing screws
Stainless steel AISI 304
RoHS
- Stainless steelNI AISI 303
- Stainless steelA4 AISI 316
Hexagon nut ISO 4032
Stainless steel AISI 304
Serrated washer DIN 6797
for securing screws
Stainless steel AISI 304
RoHS
Information
Stainless steel hinges GN 129.2 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged.
With the fixing from the inside, they are especially suitable for doors and trap doors which must not be detachable from the outside as an anti-tamper device.
see also...
| How to order |
| ||||||||
GN 129.2-45-40-C-NI |
