Zinc Die Casting

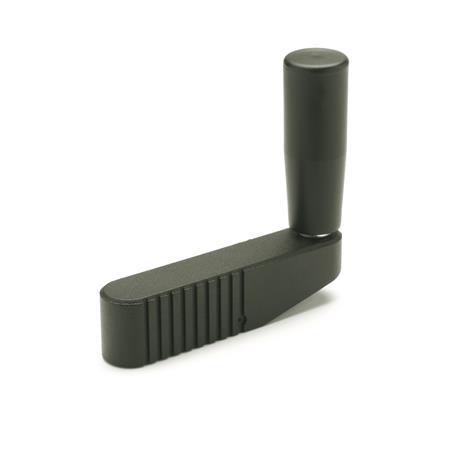

GN 112.1 Control Handles, plastic coated
| l1 | d H7 Blind bore | b | h1 | h2 | h3 ≈ | l2 | t min. | Ø Handle | |
|---|---|---|---|---|---|---|---|---|---|
| 70 | S 8 | - | 17 | 19 | 11,5 | 42,5 | 26,5 | 12 | 18 |
| 80 | S 8 | - | 18 | 21 | 12,5 | 52,5 | 31 | 12 | 21 |
| 90 | S 10 | - | 19 | 23 | 13,5 | 52,5 | 35,5 | 15 | 21 |
| 100 | S 10 | S 12 | 20 | 25 | 14 | 67,5 | 40 | 17 | 23 |
Filter combination produces no result.
Specification
Body
Zinc die casting
Revolving handles GN 598
RoHS
Zinc die casting
- Powder coated
- Black, textured finish
Revolving handles GN 598
- Plastic, Technopolymer
Black, matte finish - Spindle steel
Zinc plated, blue passivated
RoHS
Information
Control handles GN 112.1 allow fine adjustment.
They are connected to a shaft by means of a cross pin. To simplify the installation there is a centred drilling on both sides.
| How to order |
| ||||
GN 112.1-90-S10 |
