with Movable Bar

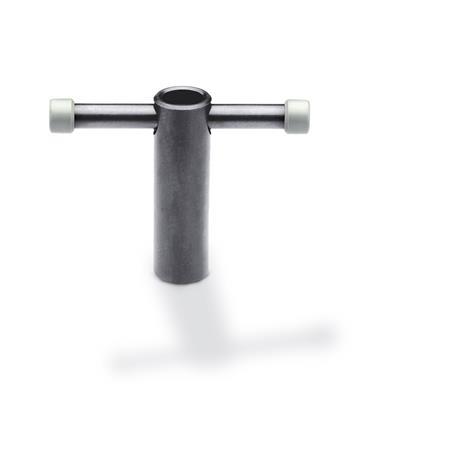

DIN 6307 Tommy Nuts, steel, blackened
| d1 | d2 | d3 | l1 | l2 | l3 min. |
|---|---|---|---|---|---|
| M 10 | 18 | 8 | 80 | 60 | 20 |
| M 12 | 20 | 10 | 100 | 70 | 25 |
| M 16 | 24 | 13 | 120 | 85 | 35 |
| M 20 | 30 | 16 | 140 | 95 | 40 |
Filter combination produces no result.
Specification
Steel
Property class 5.8
Blackened
Bar end caps
Plastic, gray
RoHS
Property class 5.8
Blackened
Bar end caps
Plastic, gray
RoHS
Information
The movable bar of the tommy nut DIN 6307 is held in any position by the pressure spring.
The plastic end caps limit the travel distance. They are pressed on with form-lock and may be supplied separately if the parts are to be electro-plated. The official DIN standard sheets provides for steel rings at this point.
| How to order |
| ||
DIN 6307-M12 |
RoHS compliant:
-
-
Weight:
-
-
