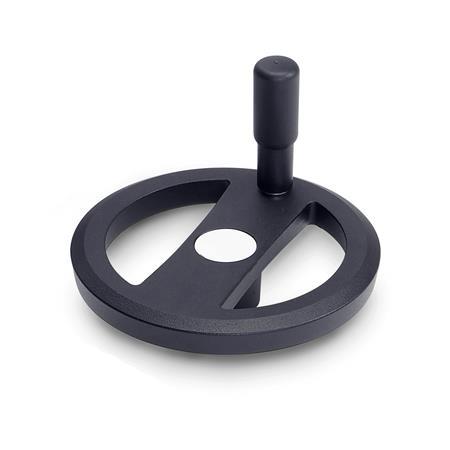

GN 924.50 Spoked Handwheel Ø 140
Bore code
| K | With keyway |
Type
| R | With revolving handle |

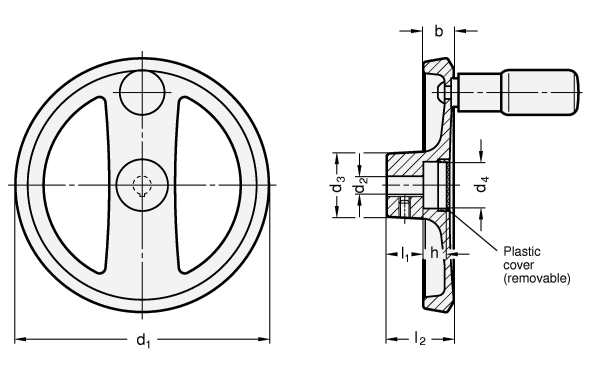

| d1 | d2 | d3 | d4 | b | h | l1 | l2 | l3 ≈ | Ø Handle GN 798.2 |
|---|---|---|---|---|---|---|---|---|---|
| 140 | 12 | 36 | 28 | 16,5 | 13 | 19 | 36,5 | 76,5 | 24 |
Filter combination produces no result.
Specification
Aluminum die casting
Hub machined
Rim turned
Powder coated
Black, RAL 9005, textured finishSW
Concentric runout and axial runout deviation of the rim < 0,4
Revolving handles GN 798.2
Plastic, Technoplymer
Black, matte finish
RoHS
Hub machined
Rim turned
Powder coated
Black, RAL 9005, textured finishSW
Concentric runout and axial runout deviation of the rim < 0,4
Revolving handles GN 798.2
Plastic, Technoplymer
Black, matte finish
RoHS
Information
| How to order |
| ||||||||
GN 924.50-140-K12-R |
