with Axial Lock (Magnetic)

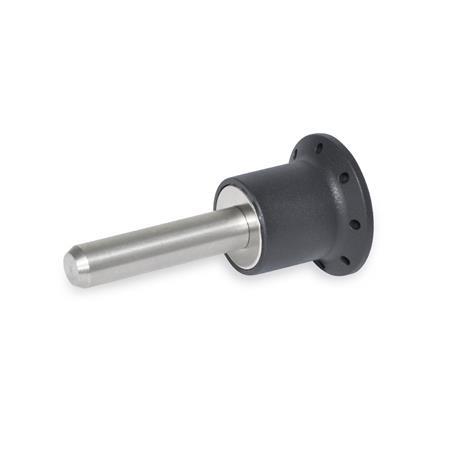

GN 124.1 Stainless Steel Locking Pins
| d1 -0,04/-0,08 | l1 | d2 | d3 | l2 | l3 | Locating bore | Axial magnet holding force in N ≈ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 12 | 17 | 22 | 27 | 32 | 42 | 52 | 26 | 17,5 | 22 | 1,3 | 6 | 65 |
| 8 | 17 | 22 | 27 | 32 | 42 | 52 | 62 | 26 | 17,5 | 22 | 1,3 | 8 | 45 |
| 10 | 18 | 23 | 28 | 33 | 43 | 53 | 63 | 34 | 23 | 28,5 | 2,2 | 10 | 95 |
| 12 | 23 | 33 | 43 | 53 | 63 | 83 | - | 34 | 23 | 28,5 | 2,2 | 12 | 75 |
Filter combination produces no result.
Specification
Plunger
Stainless steel AISI 303
Knob
Plastic
Technopolymer (Polyamide PA)
Retaining magnet
Neodymium, iron, boron
Load Capacity of Ball Lock Pins / Locking Pins
Stainless Steel Characteristics
Plastic Characteristics
RoHS
Stainless steel AISI 303
Knob
Plastic
Technopolymer (Polyamide PA)
- Black-gray
- Temperature resistant up to 80 °C
Retaining magnet
Neodymium, iron, boron
Load Capacity of Ball Lock Pins / Locking Pins
Stainless Steel Characteristics
Plastic Characteristics
RoHS
Accessory
Ball Chains GN 111 / GN 111.5Retaining Cables GN 111.2
Spiral Retaining Cables GN 111.4
Information
Stainless steel locking pins GN 124.1 are used for quickly fixing, connecting and locking various parts and workpieces made of magnetic materials.
A neodymium magnet is recessed into the underside of the bolt and axially retains the bolt in its inserted procession. High-quality surfaces with perpendicular locating holes promote magnetic flux to produce excellent axial retention.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
see also...
| How to order |
| ||||
GN 124.1-8-22 |
