with Threaded Bushing, for Tube Clamp Connectors / Linear Actuator Connectors

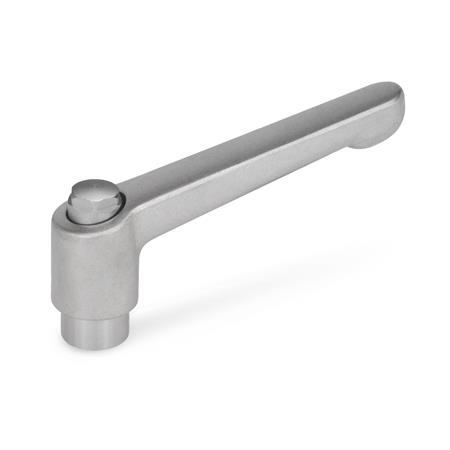

GN 911.3 Adjustable Stainless Steel Hand Levers
| l1 | d3 | h2 ≈ |
|---|---|---|
| 63 | M 8 | 45 |
| 78 | M 8 | 54 |
| 78 | M 10 | 54 |
| 92 | M 10 | 64 |
Filter combination produces no result.
Specification
Handle
Stainless steel precision casting AISI CF-8
Matte shot-blastedGS
Threaded insert and retaining screw
Stainless steel AISI 303
RoHS
Stainless steel precision casting AISI CF-8
Matte shot-blastedGS
Threaded insert and retaining screw
Stainless steel AISI 303
RoHS
Information
Adjustable stainless steel hand levers GN 911.3 replace the socket cap screws DIN 912 or the cap nuts DIN 917 of the tube clamp connectors and linear actuator connectors in stainless steel.
The table of dimensions of the tube clamp connectors and linear actuator connectors shows the matching hand lever for each screw location.
| How to order |
| ||||||
GN 911.3-63-M8-GS |
