Aluminum
GN 563.2 T-Handles
| Length l | d1 H7 Bore | d2 Thread | h1 | h2 | s Square | t min. | |
|---|---|---|---|---|---|---|---|
| 55 | B 6 | M 6 | M 8 | 33 | 22 | 14 | 12 |
| 67 | B 8 | M 8 | - | 37 | 25 | 16 | 16 |
| 80 | B 8 | M 8 | M 10 | 41 | 26 | 20 | 16 |
Filter combination produces no result.
Specification
Aluminum
RoHS
- Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
- Plain, tumbledBL
Tumbled
Flash mark not visible
RoHS
Information

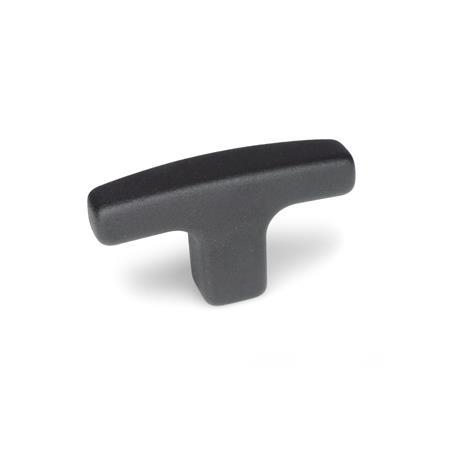

T-handles GN 563.2 can be used as either operating handles or for clamping purposes, producing high clamping forces.
T-handle screws are forged in a die and therefore have a structure with a higher stability and a smooth surface.
Original ELESA design, produced in metal in agreement with ELESA S.p.a.
| How to order |
| ||||||
GN 563.2-67-M8-SW |
