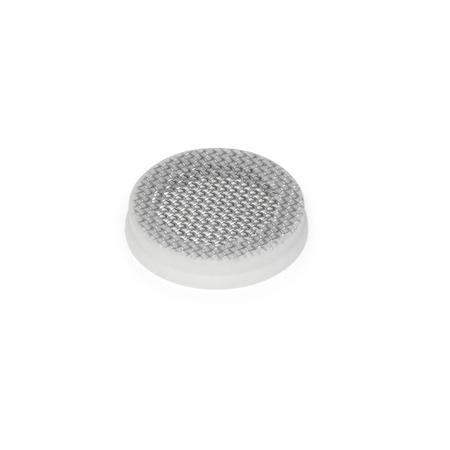

GN 7403.1 Stainless Steel Strainers
| Nominal size | Mesh size in µm | b | d1 | d2 | d3 | d4 +0,1 | d5 ±0,05 | s1 +0,1 | s2 -0,1 | suitable O-ring | suitable for nominal size d of GN 7405 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 100 | 500 | 4 | 16,6 | 15,7 | 10 | 16,6 | 18,7 | 4 | 2 | 16 x 2 | G 3/8 |
| 18 | 100 | 500 | 4 | 20,6 | 19,7 | 14 | 20,6 | 22,7 | 4 | 2 | 20 x 2 | G 1/2 |
| 24 | 100 | 500 | 4 | 26,6 | 25,7 | 20 | 26,6 | 28,7 | 4 | 2 | 26 x 2 | G 3/4 |
Filter combination produces no result.
Specification
Strainer
Stainless steel mesh AISI 304
Strainer bezel
Plastic (Polyamide PA)
RoHS
Stainless steel mesh AISI 304
Strainer bezel
Plastic (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 100 °C
RoHS
On request
Other mesh sizes
Plastic strainer mesh
Plastic strainer mesh
Information
Stainless steel strainers GN 7403.1 are adapted for use as replacements for GN 7405 strainer fittings. They are also suitable for the application-specific assembly of upstream or downstream protection devices.
Depending on the mesh size, particles carried by liquid or gaseous media can be prevented from passing through. Units or housing interiors are thereby protected from foreign objects which can impair function or durability due to their size.
The assembly space required is shown in the drawing. An additional O-ring is generally mounted at the circumference as a seal.
| How to order |
| ||||||
GN 7403.1-NI-14-500 |
