GN 187.4 Stainless Steel Serrated Locking Plates

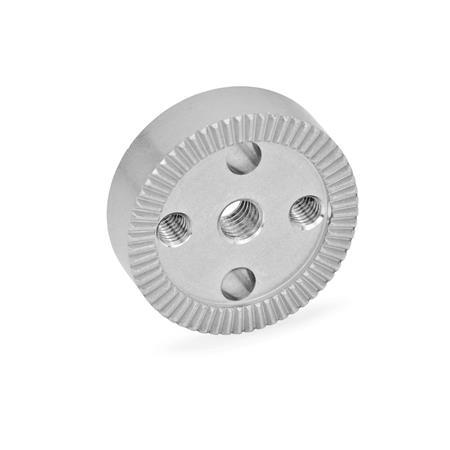

Stainless Steel Serrated Locking Plates GN 187.4 thumbnail

Stainless Steel Serrated Locking Plates GN 187.4 sketch

Type

A	With tapped hole in the center, with two countersunk holes for cap screws
B	With drilling in the center, with two countersunk holes for cap screws
C	With tapped hole in the center, with two tapped mounting holes
D	With drilling in the center, with two tapped mounting holes
E	Without drillings, blank, not hardened

Show filter

d₁	z Number of teeth		d₂	d₃	d₄	d₅	d₆	d₇	h₁ ±0,09 middle of the teeth	h₂ (2x h1)	m₁	m₂	w min. Stroke

22	48	60	15,5	M 4	4,2	3,2	M 3	3	6,5	13	12	12	0,6
27	48	60	19,5	M 5	5,2	4,3	M 4	4	7,5	15	15	15	0,7
32	48	60	23,5	M 6	6,2	5,3	M 5	5	9	18	18	18	0,9
40	48	60	30	M 8	8,2	6,3	M 6	6	11,5	23	23	23	1,3

Filter combination produces no result.

Specification

Stainless steelNI
(sintered steel) AISI 316L

Stainless Steel Characteristics

RoHS

Accessory

Guide Pots GN 187.4

Stainless Steel Thrust Springs GN 187.2

Information

With the aid of stainless steel serrated locking plates GN 187.4 standard components can be interlocked and firmly set at a defined angle.

The angle orientation of the teeth is adapted to the fastening holes, permitting an axis-parallel or right-angled arrangement.

The range of designs makes these plates adapt-able for almost any application in this particular field. To complement these serrated locking plates, accessories such as guide pots GN 187.1 and stainless steel thrust springs GN 187.2 are useful additional standard parts.
