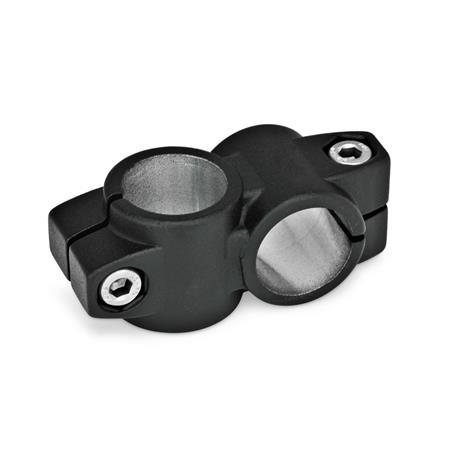

GN 132 Two-Way Connector Clamps

Two Way Connector Clamps GN 132 thumbnail

Identification No.

2	With 2 stainless steel socket cap screws DIN 912

Show filter

d₁ Bore	d₂ Bore	k Clamping length	l₁	l₂	m	z Screw locations	Accessory recom. hand lever GN 911 for z l₃

B 20	B 20	40	97	40	33	M8-25	-
B 25	B 25	40	97	40	33	M8-25	63 \| 78
B 30	B 30	40	97	40	33	M8-25	63 \| 78
B 30	B 30	56	125	56	45	M10-35	-
B 32	B 32	56	125	56	45	M10-35	-
B 35	B 35	56	125	56	45	M10-35	78 \| 92
B 40	B 40	56	125	56	45	M10-35	78 \| 92
B 40	B 40	65	143	65	53	M10-50	-
B 42	B 42	65	143	65	53	M10-50	78 \| 92
B 45	B 45	65	143	65	53	M10-50	78 \| 92
B 48	B 48	65	143	65	53	M10-50	78 \| 92
B 50	B 50	65	143	65	53	M10-50	78 \| 92
B 50	B 50	80	169	80	65	M10-50	-
B 60	B 60	80	169	80	65	M10-50	78 \| 92

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

RoHS

Accessory

Adjustable Hand Levers GN 911

On request

d₁ / d₂ with unequal bores

With inch bores

Information

The clamping bores of GN 132 two-way connector clamps are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
