for Latches GN 115, GN 115.7, GN 115.10
GN 120.2 Protective Guide Plates
Type
| A | Mounting with countersunk screw |
| B | Mounting with adhesive pad |
| h | b1 | b2 | d1 | d2 | l1 | l2 | m1 | m2 ±2 |
|---|---|---|---|---|---|---|---|---|
| 60 | 4 | 4,6 | M 4 | 3 | 20 | 10 | 40 | 35 |
Filter combination produces no result.
Specification
Plastic (Polyamide PA)
Black, matte finishSW
Adhesive pad (only type B)
Scotch-Mount ™ 4026
double-sided, with polyurethane foam backing
RoHS
Black, matte finishSW
Adhesive pad (only type B)
Scotch-Mount ™ 4026
double-sided, with polyurethane foam backing
RoHS
Information

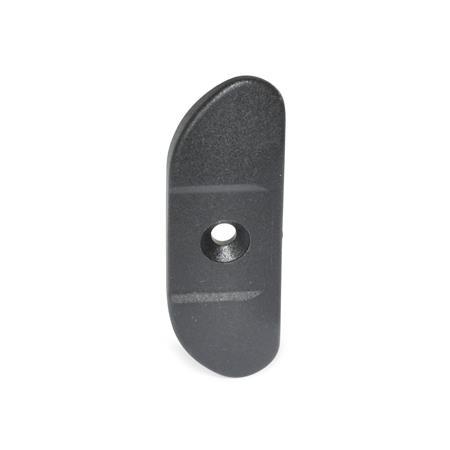

Protective guide plates are used in connection with door latches, using the principle of friction. They prevent the latch from causing abrasion, for example to corrosion protection layers on a door frame. They additionally prevent unintended opening, as the latches lock into a small recess in their closed position.
If the d2 positioning tabs are not required they can easily be removed with side cutting pliers, for example.
Latches that can be used together with GN 120.2 protective guide plates:
- Latches GN 115 (not Lockable)
- Latches GN 115 (Lockable)
- Stainless Steel Latches GN 115
- Latches with Cabinet U-Handle GN 115.7
- Latches with Gripping Tray GN 115.10
| How to order |
| ||||||||
GN 120.2-60-4-A-SW |
