with and without Rest Position

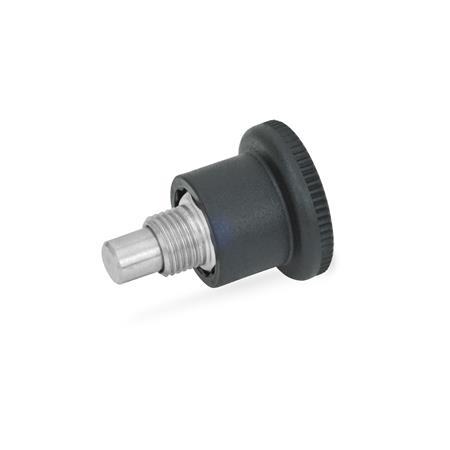

GN 822 Mini Indexing Plungers, steel / stainless steel
Type
| B | Without rest position |
| C | With rest position |

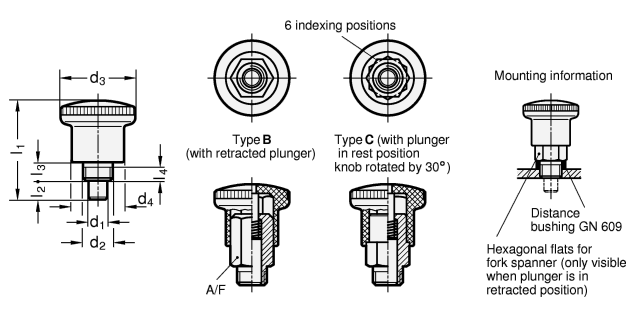

| d1 Pin 0/-0,06 Bore +0,05/+0,1 | d2 | d3 | d4 | l1 | l2 min. | l3 | l4 min. | A/F | Spring load in N ≈ Initial | end |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | M 8 x 0,75 | 21 | 15 | 26,5 | 5 | 5 | 3,5 | 10 | 4,5 | 12 |
| 5 | M 8 x 0,75 | 21 | 15 | 26,5 | 5 | 5 | 3,5 | 10 | 4,5 | 12 |
| 6 | M 10 x 1 | 25 | 18 | 34 | 7 | 7 | 4,5 | 12 | 5 | 18 |
| 7 | M 10 x 1 | 25 | 18 | 34 | 7 | 7 | 4,5 | 12 | 5 | 18 |
Filter combination produces no result.
Specification
SteelST
Zinc plated, blue passivated
Stainless steelNI AISI 303
Plunger pin
Stainless steel AISI 303
Pressure spring
Stainless steel AISI 301
Knob
Plastic (Polyamide PA)
Load Rating Information
Stainless Steel Characteristics
Metric ISO fine thread DIN 13
Plastic Characteristics
RoHS
Zinc plated, blue passivated
Stainless steelNI AISI 303
Plunger pin
Stainless steel AISI 303
Pressure spring
Stainless steel AISI 301
Knob
Plastic (Polyamide PA)
- Black, matte
- Not removable
Load Rating Information
Stainless Steel Characteristics
Metric ISO fine thread DIN 13
Plastic Characteristics
RoHS
Accessory
Distance bushings GN 609.5 are to be ordered separately.Information
Mini indexing plungers GN 822 are distinguished for their small dimensions. They have been designed for installation in thin walled sheet metal constructions.
In type C, the button can be turned by 30° after retracting the indexing pin, holding it in the “retraced” position using the indexing lock.
see also...
| How to order |
| ||||||
GN 822-6-C-ST |
