with 180° Limit Stop, with Locking Function

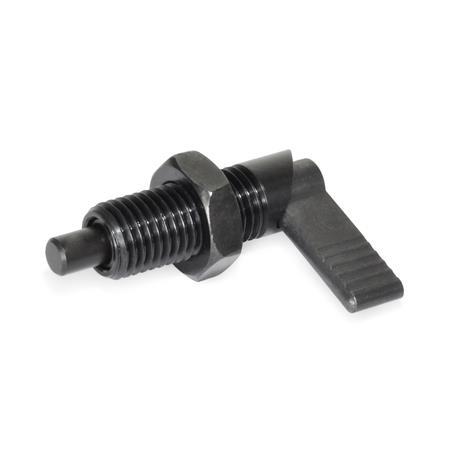

GN 721.1 Cam Action Indexing Plungers, Guide steel, blackened
Type
| RA | Right-hand lock |
| RB | Right-hand lock, with plastic cap |
| RAK | Right-hand lock, with lock nut |
| RBK | Right-hand lock, with plastic cap, with lock nut |
| LA | Left-hand lock |
| LB | Left-hand lock, with plastic cap |
| LAK | Left-hand lock, with lock nut |
| LBK | Left-hand lock, with plastic cap, with lock nut |

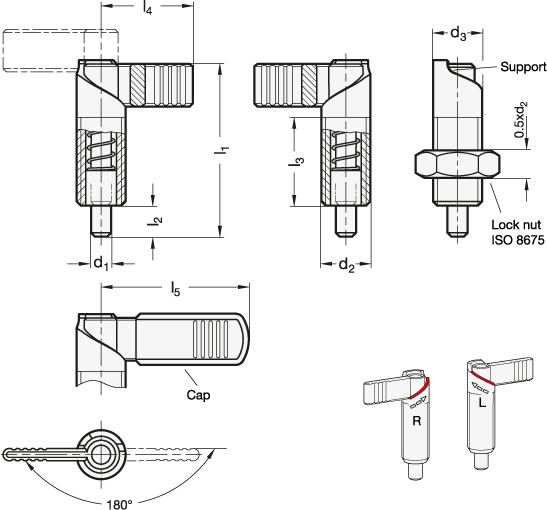

| d1 Pin -0,02/-0,04 Bore H7 | d2 | d3 | l1 | l2 | l3 +1,5 | l4 | l5 | Spring load in N ≈ initial | end |
|---|---|---|---|---|---|---|---|---|---|
| 5* | M 10 x 1 | 10 | 37,5 | 6 | 19 | 21 | - | 7 | 20 |
| 6 | M 12 x 1,5 | 12 | 47 | 8 | 26 | 26 | 32 | 8 | 18 |
| 8 | M 16 x 1,5 | 16 | 56 | 10 | 30 | 32 | 42 | 11 | 29 |
| 10 | M 20 x 1,5 | 20 | 69 | 12 | 37 | 37 | 52 | 21 | 57 |
Filter combination produces no result.
* This size is only available in types LA, LAK, RA and RAK.
Specification
Steel
Pressure spring
Stainless steel AISI 301
Cap
Plastic (Polyamide PA)
Black, matte finish
Load Rating Information
ISO Fundamental Tolerances
Stainless Steel Characteristics
Plastic Characteristics
RoHS
- Blackened
- Plunger pin nitrided
Pressure spring
Stainless steel AISI 301
Cap
Plastic (Polyamide PA)
Black, matte finish
Load Rating Information
ISO Fundamental Tolerances
Stainless Steel Characteristics
Plastic Characteristics
RoHS
Information
The groove on cam action indexing plungers GN 721.1 ensures that the locking pin remains in its withdrawn position.
For opposing cam action indexing plungers the left or right-handed types allow practical use, that is the same setting of the lock.
see also...
| How to order |
| ||||||
GN 721.1-10-M20x1,5-LB |
