Disk-Shaped, with Internal Thread

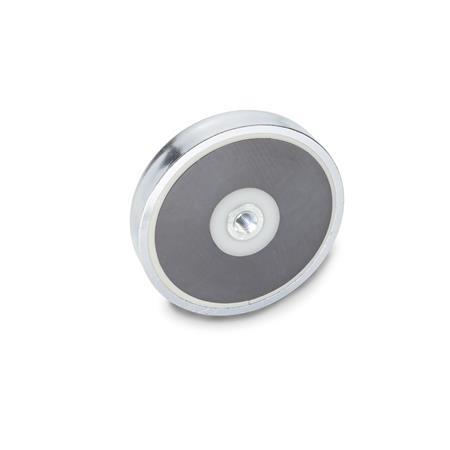

GN 50.4 Retaining Magnets

Show filter

d₁	h	d₂		d₃	Nominal magnetic forces in N

25 ±0,1	7 +0,3/-0,2	M 4	-	5,2	36
32 ±0,1	7 +0,3/-0,2	M 4	-	5,2	75
40 +0,2/-0,1	8 +0,4/-0,2	M 4	-	5,2	90
50 +0,2/-0,1	10 +0,5/-0,2	M 6	M 8	12	170
63 +0,3/-0,1	14 +0,5/-0,2	M 8	-	13	290
80 +0,3/-0,1	10 +0,5/-0,2	M 8	-	12	450
80 +0,3/-0,1	18 +0,5/-0,2	M 8	M 10	14,5	550

Filter combination produces no result.

Specification

Housing
Steel, zinc plated

Material of the magnet

Hard ferriteHF
Temperature resistant up to 200 °C

RoHS

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

Information

Retaining magnets GN 50.4 are combined with a steel housing and a plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.
