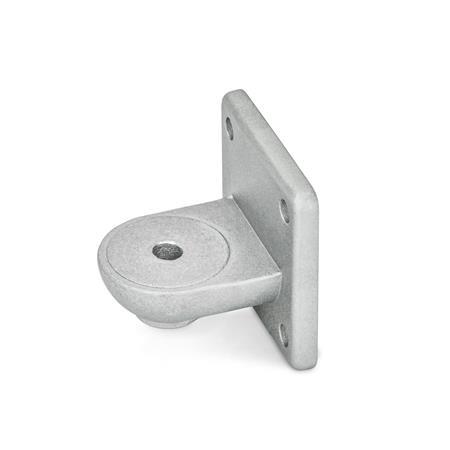

GN 272 Swivel Clamp Connector Bases

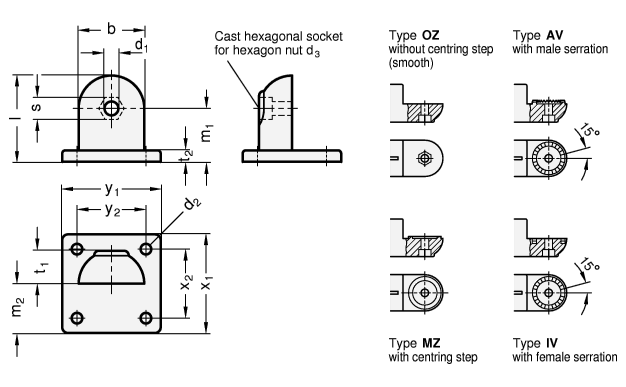

Type
| OZ | Without centering step (smooth) |
| MZ | With centering step |
| AV | With external serration |
| IV | With internal serration |
| b Swivel width | d1 | d2 | Length l | m1 | m2 | t1 | t2 | s | x1 | x2 | y1 | y2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 8,5 | 6,5 | 52,5 | 32,5 | 30 | 20 | 7 | 13 | 60 | 42 | 60 | 42 |
| 65 | 10,2 | 11 | 84,5 | 52 | 52,5 | 32,5 | 14 | 17 | 105 | 74 | 105 | 74 |
Filter combination produces no result.
Specification
Aluminum
RoHS
- Powder coated
Black, RAL 9005, textured finishSW
- Plain, Matte shot-blastedBL
RoHS
Information
Swivel clamp connector bases GN 272 can be combined with swivel clamp connectors GN 274, GN 276 or GN 278 to swivel clamp connector joints.
| How to order |
| ||||||
GN 272-40-OZ-BL |
