GN 62 U-Magnets

Show filter

b₁	b₂	d	h₁	h₂	m	s	Nominal magnetic forces in N

22	25	7	17	9	-	8	30
30	20	5	20	11	-	15	45
39	25	4,7	25	14	-	19	90
45	30	5,2	30	17	-	22	120
57	44,5	8	35	23	31,5	28	180
60	61,5	7	39	26	-	32	250
70	57	8	41	25	38	35	320
79	82	9,5	54	36	43	38,5	470

Filter combination produces no result.

Specification

Material of the magnet
AlNiCoAN
Aluminum, nickel, cobalt
(Temperature resistant up to 450 °C)

Lacquering red
Temperature resistant up to 180 °C

RoHS

On request

Plain, temperature resistant up to 450 °C

Information

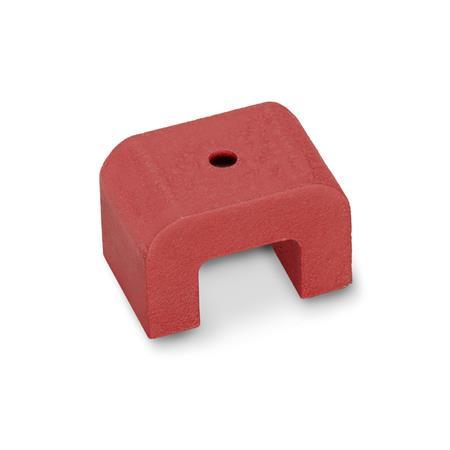

U-magnets GN 62 are unshielded magnets with a split magnetic surface that are manufactured by casting. Their usage temperature is largely limited by the red lacquering. For higher temperatures, blank U-magnets are available on request.

To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.

For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.
