without Thread

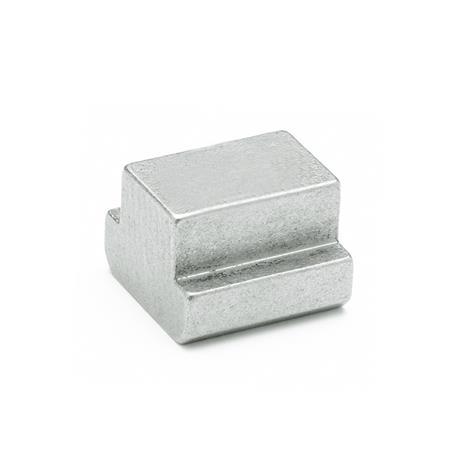

DIN 508 Stainless Steel T-Nuts
| a -0,3/-0,5 | e -0,5 | h | k -0,5 | For T-slots DIN 650 |
|---|---|---|---|---|
| 8 | 13 | 10 | 6 | 8 |
| 10 | 15 | 12 | 6 | 10 |
| 12 | 18 | 14 | 7 | 12 |
| 14 | 22 | 16 | 8 | 14 |
| 16 | 25 | 18 | 9 | 16 |
| 18 | 28 | 20 | 10 | 18 |
Filter combination produces no result.
Specification
Information
Stainless steel T-nuts DIN 508 without thread can be adapted for special applications.
| How to order |
| ||||
DIN 508-18-NI |
