Aluminum, Split Assembly

GN 165 Base Plate Connector Clamps

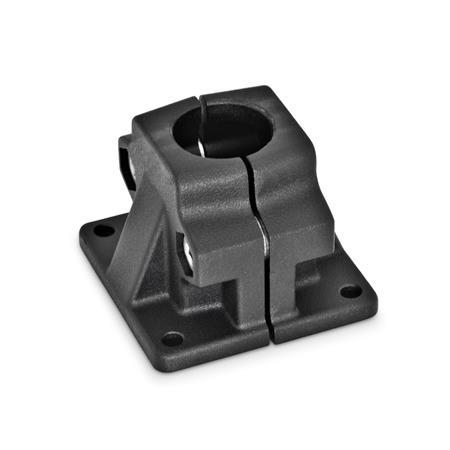

Base Plate Connector Clamps GN 165 thumbnail

Base Plate Connector Clamps GN 165 sketch

Identification no.

2	With 2 stainless steel socket cap screws DIN 912

Show filter

d₁ Bore	s Square	d₂	k Clamping length	l₁	l₂	t	x₁	x₂	y₁	y₂	z Screw locations	Accessory Recom. hand lever GN 911 for z l₃

B 20	V 20	7	58	69	46	7	75	60	75	60	M8-35	63 \| 78
B 25	V 25	7	58	69	46	7	75	60	75	60	M8-35	63 \| 78
B 30	V 30	7	58	69	46	7	75	60	75	60	M8-35	63 \| 78
B 40	V 40	11	91	98	70	14	115	90	119	90	M10-60	78 \| 92
B 42	-	11	91	98	70	14	115	90	119	90	M10-60	78 \| 92
B 45	V 45	11	91	98	70	14	115	90	119	90	M10-60	78 \| 92
B 48	-	11	91	98	70	14	115	90	119	90	M10-60	78 \| 92
B 50	V 50	11	91	98	70	14	115	90	119	90	M10-60	78 \| 92

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911

Information

The clamping bore of base plate connector clamps GN 165 is not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable levers GN 911 listed in the table as accessories.
