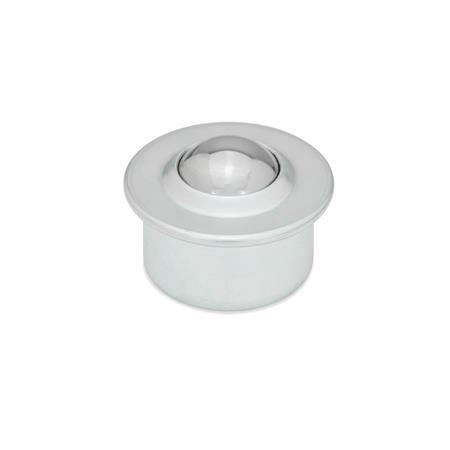

GN 509 Ball Transfer Units

Show filter

Size	d₁ Ball	d₂	d₃	h₁ ±0,3	h₂ ±0,3	h₃ ±0,3	h₄	Load C in N Version SBL	SKU	SNI	NNI

15	15,8	24 ±0,065	31	21	9,5	5	2,9	500	70	300	300
22	22,2	36 ±0,08	45	29,5	9,8	6	2,9	1200	100	900	900
30*	30,1	45 ±0,1	55	37,8	13,8	7	3,7	2000	150	1500	-

Filter combination produces no result.

* Not available as version NNI.

Specification

Housing, sheet steelSBL

Housing, sheet steelSKU

Housing, sheet steelSNI

Housing, sheet stainless steelNNI

RoHS

Spring Rings GN 509.3
(Retainers for Ball Transfer Units)

Ball transfer units GN 509 are used on conveyer tracks. They assist a linear or rotary movement of heavy loads on a conveyer track.

RoHS compliant: Info
