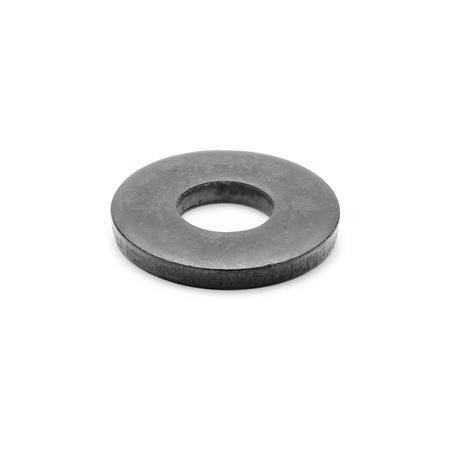

DIN 6340 Washers, Steel, tempered and phosphate-treated
| d1 | d2 | s | For screws with thread |
|---|---|---|---|
| 6,4 | 17 | 3 | M 6 |
| 8,4 | 23 | 4 | M 8 |
| 10,5 | 28 | 4 | M 10 |
| 13 | 35 | 5 | M 12 |
| 15 | 40 | 5 | M 14 |
| 17 | 45 | 6 | M 16 |
| 21 | 50 | 6 | M 20 |
| 25 | 60 | 8 | M 24 |
| 31 | 68 | 10 | M 30 |
Filter combination produces no result.
Specification
Heat-treated steel
RoHS
- Tempered
Hardness (350 + 80) HV 30 - Phosphate-treated
- Blanked
Not deburred
RoHS
Information
Washers DIN 6340 are mainly used for elongated holes.
Size 15 is not on the official DIN standard sheet.
| How to order |
| ||
DIN 6340-17 |
RoHS compliant:
-
-
Weight:
-
-
