Plastic, with DIN-Re-Fill Symbol

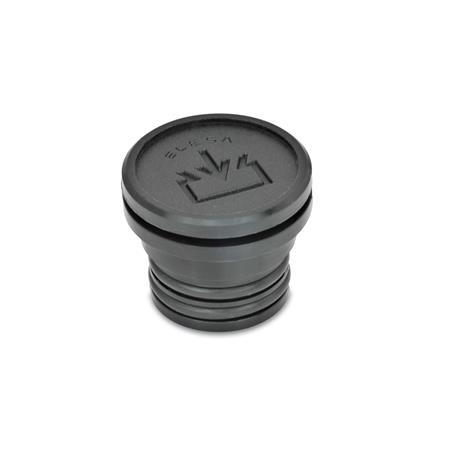

GN 748 Oil Filler Plugs, with / without dipstick
ELESA Original design TPC.
Type
| A | Without dipstick |
| B | With dipstick |
Coding
| 1 | Without vent drilling |
| 2 | With vent drilling |

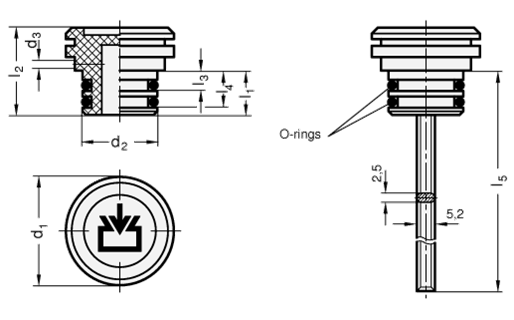

| d1 | d2 +0,2 | d3 Vent drilling | l1 | l2 | l3 | l4 | l5 |
|---|---|---|---|---|---|---|---|
| 30 | 20 | 2 | 14 | 29 | 6,5 | 10,5 | 188 |
| 35 | 26 | 2 | 14 | 29 | 6,5 | 10,5 | 188 |
Filter combination produces no result.
Specification
Plastic (Polypropylene PP)
O-rings
Rubber NBR (Perbunan®)
Dipstick
Steel, phosphated
RoHS
- Temperature resistant up to 100 °C
- Black, matte finish
O-rings
Rubber NBR (Perbunan®)
Dipstick
Steel, phosphated
RoHS
On request
Fluid level markings / special lengths
see GN 109
see GN 109
Information
Oil filler plugs GN 748 with DIN „fill“ symbol do not require a thread. They are for push-fit and the minimum wall thickness of the tank must be 6,5 mm (l3).
MAX-MIN markings can easily be added to the flats of a dipstick (see GN 109).
