Aluminum, Multi Part Assembly, for Two-Axis System

GN 134.2 Two-Way Linear Actuator Connectors

Two Way Linear Actuator Connectors GN 134.2 thumbnail

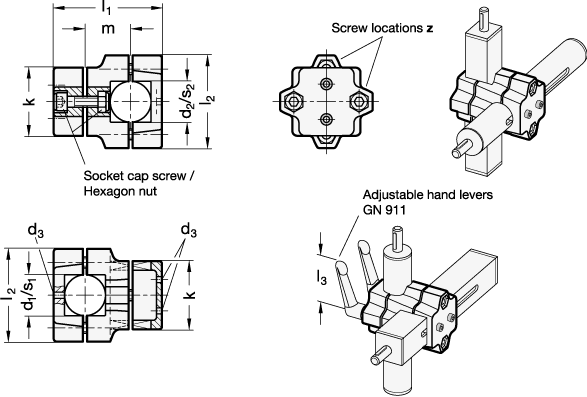

Two Way Linear Actuator Connectors GN 134.2 sketch

Identification no.

2	With 4 stainless steel socket cap screws DIN 912

Show filter

d₁ - d₂ Bore - Bore	d₁ - s₂ Bore - Square	s₁ - s₂ Square - Square	k Clamping length	d₃ Mounting screws on the drive key	l₁	l₂	m	z Screw locations	Accessory recom. hand lever GN 911 for z l₃

B30-B30	B30-V30	V30-V30	50	M 4	79,5	68	33,5	M8-30	63 \| 78
B30-B30	B30-V30	V30-V30	60	M 4	109	79	50	M8-50	63 \| 78
B40-B40	B40-V40	V40-V40	60	M 5	109	79	50	M8-50	63 \| 78
B40-B40	B40-V40	V40-V40	76	M 5	125	98	55	M10-50	78 \| 92
B50-B50	B50-V50	V50-V50	76	M 6	125	98	55	M10-50	78 \| 92

Filter combination produces no result.

Specification

Aluminum
Powder coated
Black, RAL 9005, textured finishS

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

RoHS

Accessory

Adjustable hand levers GN 911

Information

Two-way linear actuator connectors GN 134.2 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator.

Centering bushings in the through-hole eliminate the axial clearance. The width of the s₁ square is dimensionally aligned with the play of the square linear actuators.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
