Aluminium

GN 484 Attachment Swivel Mountings Clamps

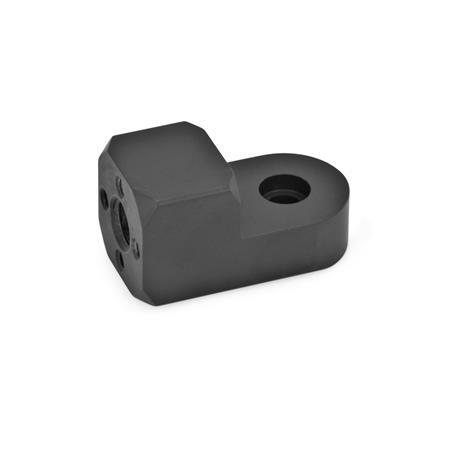

Attachment Swivel Mountings Clamps GN 484 thumbnail

Attachment Swivel Mountings Clamps GN 484 sketch

Show filter

d₁			k	d₂	d₃ Swivel bore	l₁	l₂	l₃	l₄	m	Clamping kit for d₃ Type S	Clamping kit for d₃ Type K

M 5	M 6	M 8	16	7	4,5	30	22	13	8	-	GN 511.1-M4-16-S	GN 511.1-M4-16-K
M 6	M 8	-	20	8,5	5,5	38	28	17	10	14	GN 511.1-M5-20-S	GN 511.1-M5-20-K
M 8	M 10	-	25	10	6,5	46	33,5	20	12,5	14	GN 511.1-M6-25-S	GN 511.1-M6-25-K
M 8	M 10	M 12	30	10	6,5	55	40	24	15	17	GN 511.1-M6-30-S	GN 511.1-M6-30-K

Filter combination produces no result.

Specification

Aluminum

Matte, groundMT
Anodized blackELS

RoHS

Information

Attachment swivel mountings clamps GN 484 are primarily designed for mounting sensor holders GN 479 and retaining plates GN 479.1. They are fitted with a central thread and for the size k = 20 and higher, an additional bore template 4 x M4.

They can be combined with swivel mounting clamps GN 482, T-swivel mounting clamps GN 483 as well as base plate swivel mounting clamps GN 485 with the same k dimensions to mounting clamps joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available for this purpose (article code see table of dimensions).
