Duroplast, with Bushing in Brass

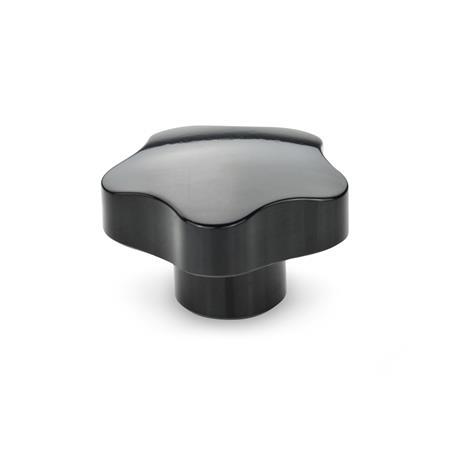

GN 5337 Star Knobs
ELESA original design VC.192 / VC.254
Type
| E | With threaded blind bore |
| D | With threaded through bore |
| d1 | d2 Type E | Type D | d3 | d4 | h1 +1 | h2 +1 | h3 | t1 min. | t2 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 32 | M 6 | - | - | - | 19 | 23 | 11 | - | 12 | - |
| 40 | M 6 | M 8 | M 8 | 14 | 21 | 27 | 12 | 1,5 | 13 | 18 |
| 50 | M 8 | M 10 | M 10 | 16 | 25 | 33 | 14 | 1,5 | 17 | 22 |
| 60 | M 10 | M 12 | M 12 | 17 | 27 | 37 | 17 | 1,5 | 20 | 26 |
| 70 | M 12 | - | M 12 | 17 | 30 | 44 | 20 | 1,5 | 20 | 26 |
| 85 | M 16 | - | M 16 | 24 | 35 | 54 | 30 | 2 | 22 | 35 |
Filter combination produces no result.
Specification
Plastic
Duroplast (PF)
Bushing
Brass
RoHS
Duroplast (PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
Bushing
Brass
RoHS
Information
Star knobs GN 5337 meet highest quality requirements. Due to a special manufacturing process the mould parting line can be avoided.
| How to order |
| ||||||
GN 5337-40-M8-E |
