with Operating Elements

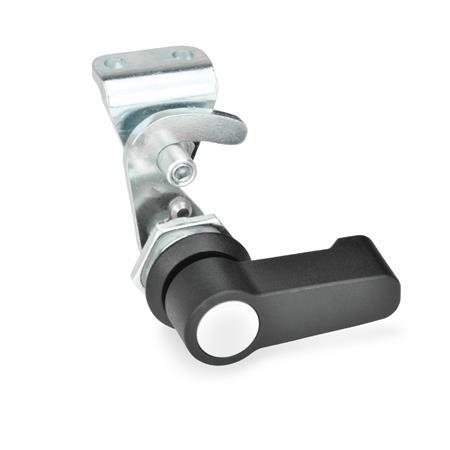

GN 115.8 Hook-Type Latches
Type
| SG | With star knob |
| SK | With wing knob |
| ST | With T-Handle |
| RG | With knurled knob GN 7336 |
| KG | With wing knob |
| HG | With lever |
Version of the hook
| H1 | Pivoting radius R=28 |
Identification no.
| 1 | Without latch bracket |
| 2 | With latch bracket |
| Hook distance A | d Type SG, RG, KG, HG | Type SK, ST | h Type SG, RG, KG, HG | Type SK, ST |
|---|---|---|---|---|
| 18 | 28 | 32 | 4 | 6 |
Filter combination produces no result.
1) Dimensions of the latch bracket see PDF for "Construction and assembly instructions"
Specification
Lock housing
Zinc die casting
Housing collar
Other parts
Steel
Zinc plated, blue passivated
Operating elements
Plastic (Polyamide PA)
Black, matte finish
Cover cap (Type RG, KG, HG)
Plastic
Light gray, matte finish
RoHS
Zinc die casting
Housing collar
- Chrome platedCR
- Powder coated
Black, RAL 9005, textured finishSW
Other parts
Steel
Zinc plated, blue passivated
Operating elements
Plastic (Polyamide PA)
Black, matte finish
Cover cap (Type RG, KG, HG)
Plastic
Light gray, matte finish
RoHS
On request
Hook-type latches with other hook distance A
Hook with other pivoting radius R
Hook with other pivoting radius R
Information
Hook-type latches GN 115.8 with hook and catch are mainly used for sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.
Hook-type latches GN 115.8 are supplied with loosely enclosed hook.
| How to order |
| ||||||||||
GN 115.8-HG-18-H1-SW-2 |
