for Grub Screws DIN 6332, for Tommy Screws DIN 6304 / DIN 6306

DIN 6311 Thrust Pads

Type

S	With circlip

Show filter

d₁	d₂ H12	d₃	e≈	h₁	h₂	suitable for grub screw DIN 6332

12	4,6	10	2,1	7	2,5	M 6	-
16	6,1	12	3	9	4	M 8	-
20	8,1	15	3,6	11	5	M 10	M 12
25	8,1	18	4,6	13	6	M 10	M 12
32	12,1	22	5,4	15	7	M 16	-
40	15,6	28	5,5	16	9	M 20	-

Filter combination produces no result.

Specification

Steel

Case-hardened
Blackened

Snap ring
Spring steel wire

ISO Fundamental Tolerances

RoHS

Accessory

Grub Screws DIN 6332

Tommy Screws DIN 6304

Tommy Screws DIN 6306

Information

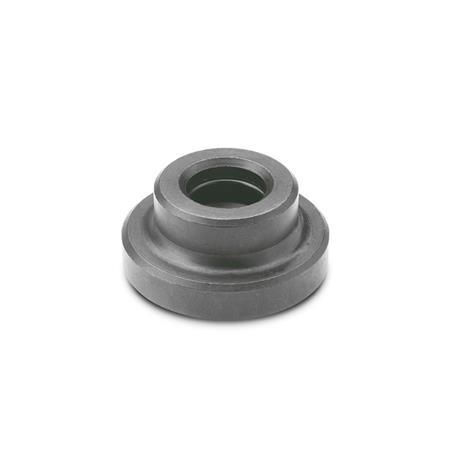

Thrust pads DIN 6311 are utilized to transmit clamping forces. They lean to uneven and unparallel surfaces and eliminate the transmission of any screw turning movement to the workpiece.

For simpler assembly, the thrust pad has to be held at an angle allowing the circlip to drop to the bottom of its groove with the split end downwards. The screw is then offered up to the split end of the snap ring at the lowest possible angle and pressed home.
