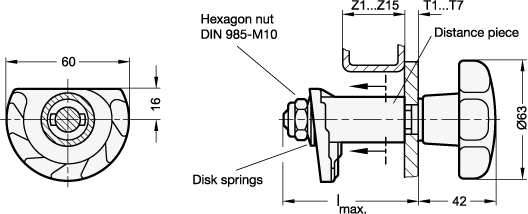

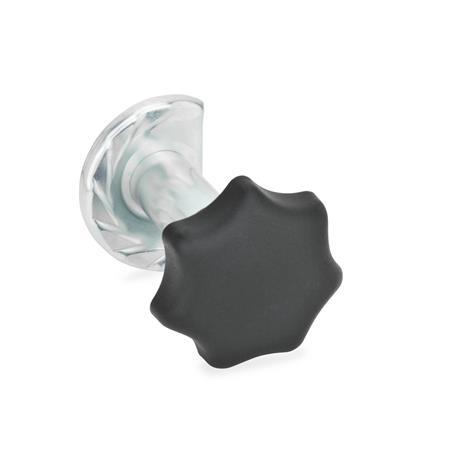

GN 117 Latches
Type
| SG | With star knob |
| Door thicknessT1...T7 | ||||||
|---|---|---|---|---|---|---|
| T 1 | T 2 | T 3 | T 4 | T 5 | T 6 | T 7 |
| 1,5 - 3 | 3 - 4,5 | 4,5 - 6 | 6 - 7,5 | 7,5 - 9 | 9 - 10,5 | 10,5 - 12 |
Filter combination produces no result.
| Door frame thickness Z1...Z15 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z 1 | Z 2 | Z 3 | Z 4 | Z 5 | Z 6 | Z 7 | Z 8 | Z 9 | Z 10 | Z 11 | Z 12 | Z 13 | Z 14 | Z 15 |
| 0 - 9 | 3 - 12 | 6 - 15 | 9 - 18 | 12 - 21 | 15 - 24 | 18 - 27 | 21 - 30 | 24 - 33 | 27 - 36 | 30 - 39 | 33 - 42 | 36 - 45 | 39 - 48 | 42 - 51 |
Filter combination produces no result.
| Max. bolt length lmax. for T+Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z |
|---|---|---|---|---|---|---|---|---|---|---|---|
| <= 13,5 | <= 18 | <= 22,5 | <= 27 | <= 31,5 | <= 36 | <= 40,5 | <= 45 | <= 49,5 | <= 54 | <= 58,5 | <= 63 |
| 31 | 35,5 | 40 | 44,5 | 49 | 53,5 | 58 | 62,5 | 67 | 71,5 | 76 | 80,5 |
Filter combination produces no result.
Specification
Star knob DIN 6336
Plastic (Polyamide PA)
Cam latch
Sheet steel
Zinc plated, blue passivated
Bolt and distance piece
Steel
Zinc plated, blue passivated
RoHS
Plastic (Polyamide PA)
- Black, matte finish
Cam latch
Sheet steel
Zinc plated, blue passivated
Bolt and distance piece
Steel
Zinc plated, blue passivated
RoHS
Information
Latches GN 117 are vibration proof and they have a large pulling-in range of 10 mm. Locking is achieved by turning the knob clockwise.
Attention is drawn to its simple and hence cost saving installation.
| How to order |
| ||||||
GN 117-SG-T2-Z5 |
