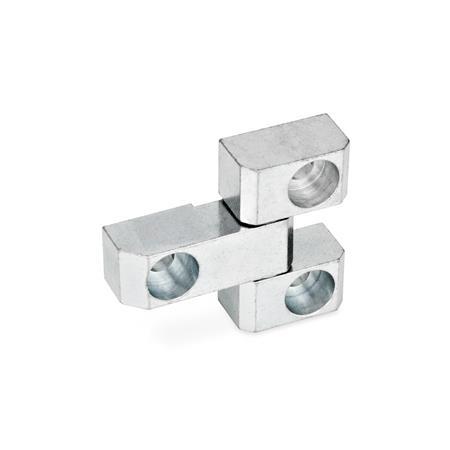

Consisting of Three Parts, Steel
GN 129.3 Hinges,
Type
| A | Mounting from the front side |
| l1 | l2 | b | d1 | d2 | d3 Pin | h | l3 | l4 max. | l5 | l6 max. | l7 | l8 | m1 | m2 | m3 | t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 66 | 55 | 18 | 8,4 | 15 | 8 | 18 | 24 | 42 | 12 | 29 | 32 | 26 | 41 | 37 | - | 9 |
| 91 | 55 | 18 | 8,4 | 15 | 8 | 18 | 24 | 67 | 12 | 29 | 32 | 51 | 41 | 37 | 25 | 9 |
Filter combination produces no result.
Specification
SteelST
Zinc plated, blue passivated
Pin
Brass, nickel plated
Washer
Brass, nickel plated
RoHS
Zinc plated, blue passivated
Pin
Brass, nickel plated
Washer
Brass, nickel plated
RoHS
Information
Hinges GN 129.3 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged.
The hinges are fastened with socket cap screws DIN 912. This allows arbitrary wall thicknesses on the housing or door to be realized with the existing thread or using through-holes.
