Metal, for Threaded Plugs DIN 908

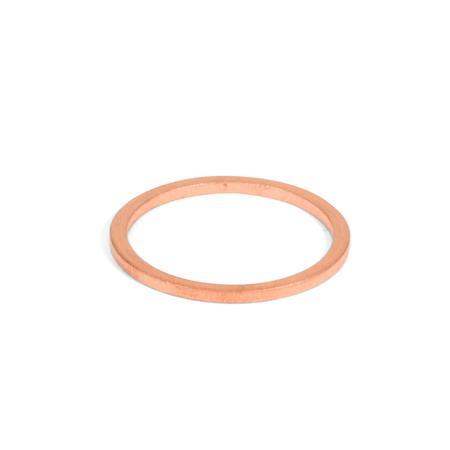

DIN 7603 Gaskets
Form
| A | Flat gasket |
| d1 Nominal dimension | Actual dimension +0,3 | d2 Nominal dimension | Actual dimension -0,2 | s ±0,2 | suitable for DIN 908 metr. thread | Tube thread |
|---|---|---|---|---|---|---|
| 8 | 8,2 | 11,5 | 11,4 | 1 | M 8 x 1 | - |
| 10 | 10,2 | 13,5 | 13,4 | 1 | M 10 x 1 | G 1/8 |
| 12 | 12,2 | 16 | 15,9 | 1,5 | M 12 x 1,5 | - |
| 14 | 14,2 | 18 | 17,9 | 1,5 | M 14 x 1,5 | G 1/4 |
| 16 | 16,2 | 20 | 19,9 | 1,5 | M 16 x 1,5 | - |
| 17 | 17,2 | 21 | 20,9 | 1,5 | - | G 3/8 |
| 18 | 18,2 | 22 | 21,9 | 1,5 | M 18 x 1,5 | - |
| 20 | 20,2 | 24 | 23,9 | 1,5 | M 20 x 1,5 | - |
| 21 | 21,2 | 26 | 25,9 | 1,5 | - | G 1/2 |
| 22 | 22,2 | 27 | 26,9 | 1,5 | M 22 x 1,5 | - |
| 24 | 24,3 | 29 | 28,9 | 2 | M 24 x 1,5 | - |
| 26 | 26,3 | 31 | 30,9 | 2 | M 26 x 1,5 | - |
| 27 | 27,3 | 32 | 31,9 | 2 | M 27 x 2 | G 3/4 |
| 30 | 30,3 | 36 | 35,9 | 2 | M 30 x 1,5 | - |
| 33 | 33,3 | 39 | 38,9 | 2 | M 33 x 2 | G 1 |
| 42 | 42,3 | 49 | 48,9 | 2 | M 42 x 2 | G 1 1/4 |
| 48 | 48,3 | 55 | 54,9 | 2 | M 48 x 2 | G 1 1/2 |
Filter combination produces no result.
Specification
CopperCU
AluminumAL
RoHS
AluminumAL
RoHS
On request
Other sizes
Other materials
Other types
Other materials
Other types
Information
The gaskets listed in this standard sheet are only an extract of DIN 7603.
They are used in connection with threaded plugs DIN 908.
| How to order |
| ||||||||
GN 7603-CU-20-24-A |
