Heavy Duty Steel / Stainless Steel Housing, with Collar

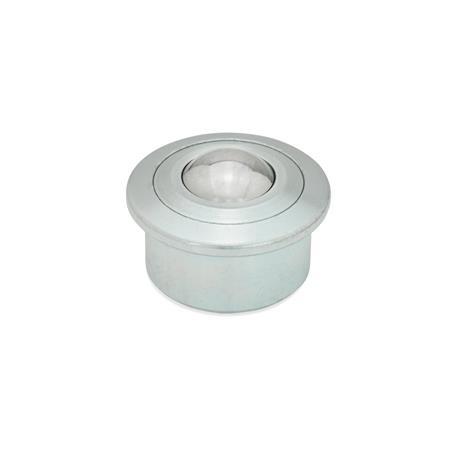

GN 509.1 Ball Transfer Units

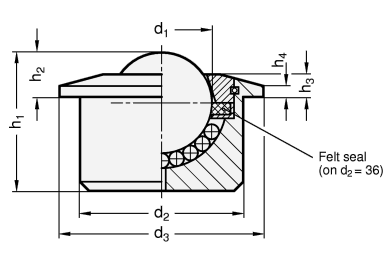

| Size | d1 Ball | d2 ±0,08 | d3 | h1 ±0,3 | h2 ±0,3 | h3 ±0,3 | h4 | Load C in N Types SBL | SNI | NNI |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 12,7 | 22 | 27 | 17 | 8 | 4 | 3,2 | 200 | 150 | 150 |
| 15 | 15,8 | 24 | 30 | 20 | 8,1 | 3,5 | 1 | 500 | 400 | 400 |
| 22 | 22,2 | 36 | 45 | 30,5 | 9,8 | 5 | 2,4 | 1300 | 1000 | 1000 |
| 30 | 30,1 | 45 | 55 | 36,8 | 13,8 | 7 | 4,5 | 2500 | 2000 | 2000 |
| 45 | 44,4 | 62 | 75 | 53,5 | 19 | 9,5 | 5,5 | 6000 | 4500 | 4500 |
| 60 | 60 | 100 | 117 | 77,5 | 30 | 15 | 10 | 13000 | 10000 | 10000 |
Filter combination produces no result.
Specification
Housing steelSBL
Housing steelSNI
Housing Stainless SteelNNI
RoHS
- Zinc plated, blue passivated
- Ball, Steel, plain
Housing steelSNI
- Zinc plated, blue passivated
- Ball stainless steel
AISI 420C
Housing Stainless SteelNNI
- AISI 420B
- AISI 303 (only size 15)
- Ball stainless steel 420C
RoHS
Accessory
Ball Transfer Unit GN 509.3On request
Plastic ball (Polyamide)
Information
Ball transfer units GN 509.1 are used on conveyer tracks. They assist a linear or rotary movement of heavy loads on a conveyer track.
see also...
| How to order |
| ||||
GN 509.1-30-SNI |
RoHS compliant:
-
-
Weight:
-
-
PDF not available
