GN 485 Base Plate Swivel Mounting Clamps

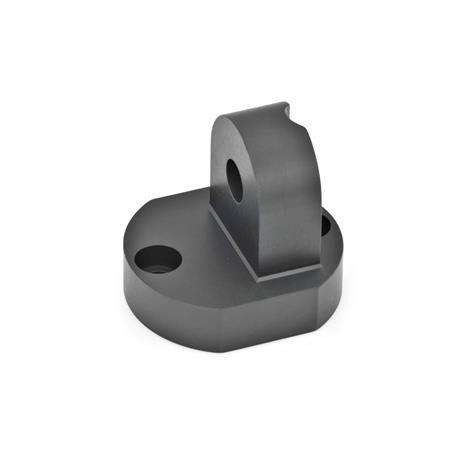

Base Plate Swivel Mounting Clamps GN 485 thumbnail

Base Plate Swivel Mounting Clamps GN 485 sketch

Show filter

k	b	d₁	d₂ For screw	d₃ Swivel bore	d₄	l₁	l₂	l₃	l₄	l₅	m	Clamping kit for d₃ Type K	Clamping kit for d₃ Type S

16	29	31,5	M 4	4,5	7,5	25	17	7	3	8	22	GN 511.1-M4-16-K	GN 511.1-M4-16-S
20	35	38	M 5	5,5	9	30	20	8	2,5	10	27	GN 511.1-M5-20-K	GN 511.1-M5-20-S
25	41	45	M 6	6,5	10,5	37	24,5	10	4	12,5	32	GN 511.1-M6-25-K	GN 511.1-M6-25-S
30	44	50	M 6	6,5	10,5	44,5	29,5	12,5	6,5	15	36	GN 511.1-M6-30-K	GN 511.1-M6-30-S

Filter combination produces no result.

Specification

Aluminum

Matte, groundMT
Anodized blackELS

RoHS

Accessory

Clamping Kits GN 511.1

Information

Base plate swivel mounting clamps GN 485 can be combined with swivel mounting clamps GN 482, T-swivel mounting clamps GN 483 and attachment mounting clamps GN 484 with the same k dimensions into mounting clamp connector joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available for this purpose (article code see table of dimensions).

The bore distance m of base plate swivel mounting clamps GN 485 corresponds to base plate mounting clamps GN 473, mounting clamps GN 477, flanged mounting bolts GN 480 as well as retaining magnets GN 51.6.
