Plastic, for Angle Pieces GN 960 / GN 961
GN 963 Cover Caps
| b Nominal dimension | Actual size | l1 | l2 | l3 | l4 |
|---|---|---|---|---|---|
| 30 | 28 | 30 | 30 | 3 | 6,8 |
| 40 | 38 | 40 | 40 | 4 | 7,2 |
| 45 | 43 | 45 | 45 | 4 | 11,5 |
Filter combination produces no result.
Specification
Information

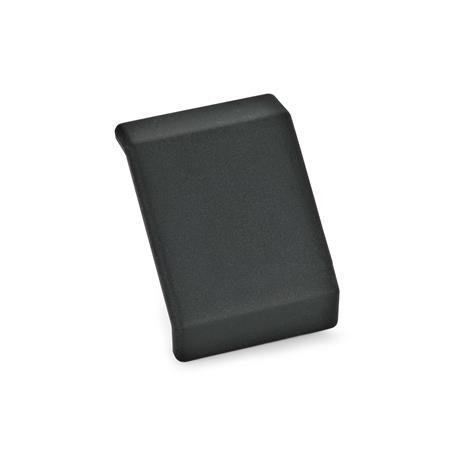

Cover caps GN 963 are suitable for use with angle brackets for profile systems GN 960 and GN 961. After the angle pieces are assembled, the cover caps are snapped into place via four lugs. They give the angle pieces an attractive appearance and protect against dirt.
Even after repeated use, the cover caps will remain firmly in place attached to the angle pieces, thanks to the elastic snap-type lugs.
| How to order |
| ||||||||
GN 963-40-40-40-SW |
