Drill Bushings, without Collar

DIN 179 Guide Bushings

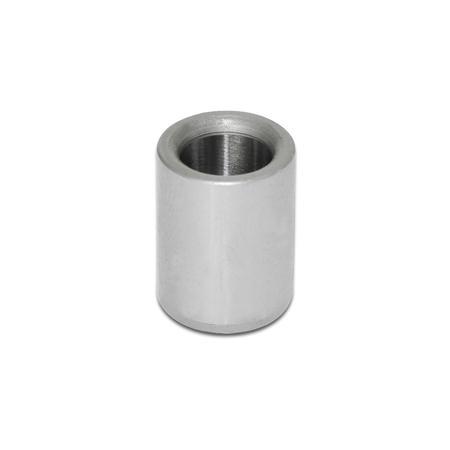

Guide Bushings DIN 179 thumbnail Zoom

Drill Bushings, without Collar

DIN 179 Guide Bushings

Guide Bushings DIN 179
© Copyright
Otto Ganter GmbH & Co. KG Photo can differ
Guide Bushings DIN 179 sketch


Type

ABore one-sided rounded
d1 F7
... ,0
... ,2
... ,2
... ,3
... ,4
... ,5
... ,6
... ,7
... ,8
... ,9		l1d2 n6
------B 0,6B 0,7B 0,8-6--3
---------B 0,969-3
B 1---------69-3
-B 1,1B 1,2B 1,3B 1,4B 1,5B 1,6B 1,7B 1,8-69-4
---------B 1,969-5
B 2B 2,1B 2,2B 2,3B 2,4B 2,5B 2,6---69-5
-------B 2,7B 2,8B 2,9812166
B 3B 3,1B 3,2B 3,3------812166
----B 3,4B 3,5B 3,6B 3,7B 3,8B 3,9812167
B 4---------812167
-B 4,1B 4,2B 4,3B 4,4B 4,5B 4,6B 4,7B 4,8B 4,9812168
B 5---------812168
-B 5,1B 5,2B 5,3B 5,4B 5,5B 5,6B 5,7B 5,8B 5,910162010
B 6---------10162010
-B 6,1B 6,2B 6,3B 6,4B 6,5B 6,6B 6,7B 6,8B 6,910162012
B 7B 7,1B 7,2B 7,3B 7,4B 7,5B 7,6B 7,7B 7,8B 7,910162012
B 8---------10162012
-B 8,1B 8,2B 8,3B 8,4B 8,5B 8,6B 8,7B 8,8B 8,912202515
B 9B 9,1B 9,2B 9,3B 9,4B 9,5B 9,6B 9,7B 9,8B 9,912202515
B 10---------12202515
-B 10,1B 10,2B 10,3B 10,4B 10,5B 10,6B 10,7B 10,8B 10,912202518
B 11B 11,1B 11,2B 11,3B 11,4B 11,5B 11,6B 11,7B 11,8B 11,912202518
B 12---------12202518
-B 12,1B 12,2B 12,3B 12,4B 12,5B 12,6B 12,7B 12,8B 12,916283622
B 13B 13,1B 13,2B 13,3B 13,4B 13,5B 13,6B 13,7B 13,8B 13,916283622
B 14B 14,1B 14,2B 14,3B 14,4B 14,5B 14,6B 14,7B 14,8B 14,916283622
B 15---------16283622
-B 15,1---B 15,5----16283626
B 16B 16,1---B 16,5----16283626
B 17----B 17,5----16283626
B 18---------16283626
-----B 18,5----20364530
B 19----B 19,5----20364530
B 20----B 20,5----20364530
B 21----B 21,5----20364530
B 22---------20364530
-----B 22,5----20364535
B 23----B 23,5----20364535
B 24----B 24,5----20364535
B 25----B 25,5----20364535
B 26---------20364535
-----B 26,5----25455642
B 27----B 27,5----25455642
B 28----B 28,5----25455642
B 29----B 29,5----25455642
B 30---------25455642
-----B 30,5----25455648
B 31----B 31,5----25455648
B 32----B 32,5----25455648
B 33----B 33,5----25455648
B 34----B 34,5----25455648
B 35---------25455648
B 36---------30566755
B 37---------30566755
B 38---------30566755
B 39---------30566755
B 40---------30566755
B 41---------30566755
B 42---------30566755
Filter combination produces no result.

Specification

Steel
Hardened (HRC 62 ±2)
Fit size d1, d2 ground
ISO Fundamental Tolerances
RoHS

On request

Other bores d1
Bore d1 both-sided rounded (Type B)

Information

Guide bushings DIN 179 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications.

Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended.

For guide applications, combination with the guide pins GN 771.1 is recommended.

How to order
1d1
2l1
3Type
DIN 179-B32,5-45-A
