Aluminum, Multi Part Assembly

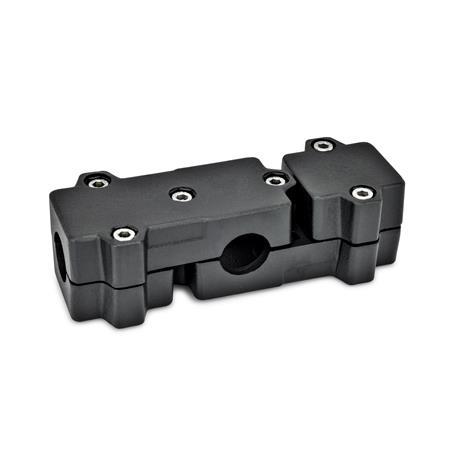

GN 195 T-Angle Connector Clamps

T Angle Connector Clamps GN 195 thumbnail

Identification no.

2	With 6 stainless steel socket cap screws DIN 912

Show filter

d Bore	s Square	k Clamping length	l₁	l₂	l₃	m	z Screw locations	Accessory recom. hand lever GN 911 for z l₄

B 20	V 20	50	172	68	46	86	M8-35	63 \| 78
B 25	V 25	50	172	68	46	86	M8-35	63 \| 78
B 30	V 30	50	172	68	46	86	M8-35	63 \| 78
B 30	V 30	60	203	79	59	101,5	M8-50	63 \| 78
B 32	-	60	203	79	59	101,5	M8-50	63 \| 78
B 35	V 35	60	203	79	59	101,5	M8-50	63 \| 78
B 40	V 40	60	203	79	59	101,5	M8-50	63 \| 78
B 40	V 40	76	254	98	70	127	M10-60	78 \| 92
B 42	-	76	254	98	70	127	M10-60	78 \| 92
B 45	V 45	76	254	98	70	127	M10-60	78 \| 92
B 48	-	76	254	98	70	127	M10-60	78 \| 92
B 50	V 50	76	254	98	70	127	M10-60	78 \| 92

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911

Information

The clamping bores of T-angle connector clamps GN 195 are not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
