GN 923.3 Handwheels with Retractable Handle, plastic coated, handle locked

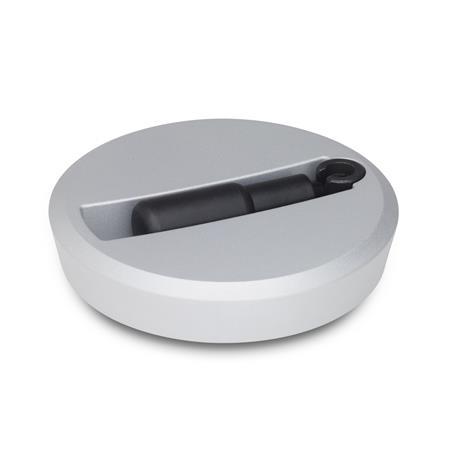

Handwheels with Retractable Handle plastic coated handle locked GN 923.3 thumbnail

Handwheels with Retractable Handle plastic coated handle locked GN 923.3 sketch

Bore code

B	Without keyway
K	With keyway

Type

R	With revolving retractable handle

Show filter

d₁	d₂ H7 Bore		d₃	d₄	b	h	l₁	l₂ ≈	l₃ ≈	r	Ø Handle	recommended countersunk washer

100	10	12	18	28	20	4	17	39	56,5	35	18	GN 184-16
125	12	14	23	31	24,5	4	18	45	60,5	44,5	22	GN 184-22
140	14	16	23	36	26	4	19	47	75,5	52	24	GN 184-22
160	14	16	23	36	26	4	20	48	75,5	61	24	GN 184-22
200	18	20	23	42	27	4	24	53	85,5	80,5	25	GN 184-22

Filter combination produces no result.

Specification

Aluminum die casting

Hub machined
Rim turned
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR

Radial and axial runout of the rim < 0.4

Retractable handle GN 798.3

Plastic, Technopolymer
Black, matte
Retracting mechanism
Steel, blackened

Keyway P9 DIN 6885 Page 1

Cross holes GN 110

ISO Fundamental Tolerances

Plastic Characteristics

RoHS

Accessory

Countersunk Washers GN 184

Information

The handle in these handwheels is locked in a conical bore in the operating position. For reversal, it must first be pulled from the cone in axial direction.

A pressure spring holds the handle in both positions. When swung out, it automatically engages again.
