Plastic

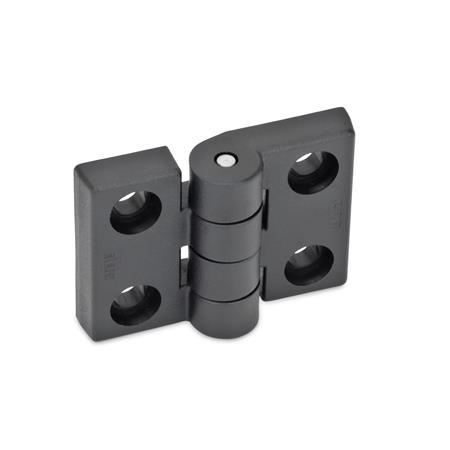

GN 157 Hinges
ELESA original design CFH. / CFL.
| l1 -0,5 | l2 | d1 | d2 | h1 | h2 | h3 | l3 | m1 ±0,25 | m2 ±0,25 | t | for screw DIN 7984 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 70 | 50 | 6,5 | 6 | 19,5 | 10 | 21 | 24 | 45,5 | 30 | 6,5 | M 6 |
| 70 | 50 | 8,5 | 6 | 19,5 | 10 | 21 | 24 | 45,5 | 30 | 4,5 | M 8 |
| 80 | 102 | 6,5 | 5 | 20,5 | 13 | 26 | 35,5 | 49,5 | 72,5 | 6,5 | M 6 |
| 80 | 102 | 8,5 | 5 | 20,5 | 13 | 26 | 35,5 | 49,5 | 72,5 | 8 | M 8 |
Filter combination produces no result.
Specification
Plastic (Polyamide PA)
Pin
Stainless steel AISI 303
RoHS
- Black, matte finish
- Temperature resistant up to 80 °C
Pin
Stainless steel AISI 303
RoHS
