for Position Indicators GN 000.8 / GN 000.3

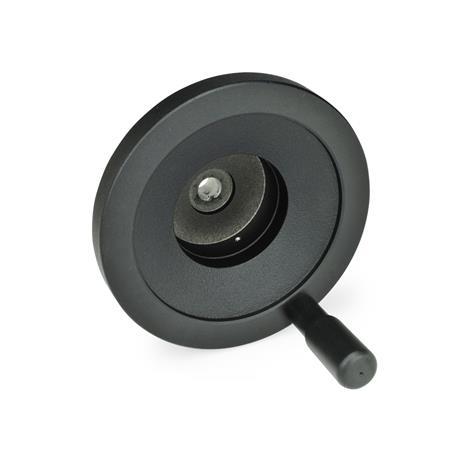

GN 323.8 Disk Handwheels, aluminium
Bore code:
| B | Without keyway |
| K | With keyway |
Type
| A | Without handle |
| R | With revolving handle |
| d1 | d2 H7 Bore | d3 | d4 | d5 | b | l1 | l2≈ | l3 | Ø | for position indicators GN 000.8 Size | GN 000.3 Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 10 | 26 | 20,5 | 56 | 13 | 16 | 48 | 3,5 | 16 | 42 | - |
| 100 | 10 | 28 | 20,5 | 56 | 14 | 17 | 58 | 3,5 | 18 | 42 | - |
| 125 | 12 | 31 | 25,5 | 76 | 15 | 18 | 61 | 4 | 22 | 60 | 60 |
| 160 | 14 | 36 | 29 | 76 | 18 | 20 | 67 | 4 | 24 | 60 | 60 |
| 200 | 18 | 42 | 33 | 79 | 20,5 | 24 | 75 | 4,5 | 25 | 60 | 60 |
| 250 | 22 | 48 | 37 | 80 | 23 | 28 | 81,5 | 4,5 | 25 | 60 | 60 |
Filter combination produces no result.
Specification
Aluminum gravity die casting
Radial and axial runout of the rim IT 12
Revolving handles GN 798
Plastic, technopolymer
Black, matte finish
RoHS
- Hub machined
- Rim turned on all sides
- Wheel body
Powder coated
Black, textured finish
Radial and axial runout of the rim IT 12
Revolving handles GN 798
Plastic, technopolymer
Black, matte finish
RoHS
Accessory
Position indicators GN 000.8 / GN 000.3 to be ordered separately.Information
Handwheels GN 323.8 have a recessed hub to accept position indicators GN 000.8 / GN 000.3.
The hub dimensions (for fitting) correspond to those of disc handwheels GN 323 and/or handwheels to DIN 950.
see also...
| How to order |
| ||||||||
GN 323.8-125-K12-R |
