with Flange for Surface Mounting, Right-Angled to the Plunger Pin

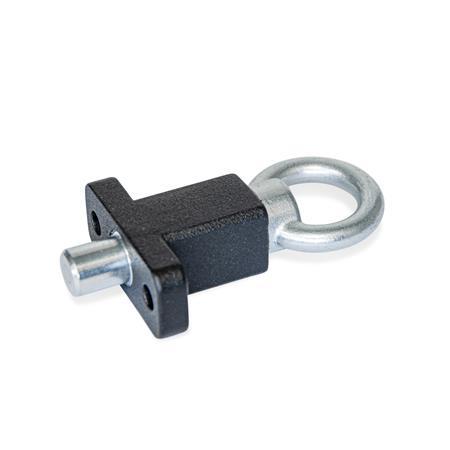

GN 722.5 Indexing Plungers

Type

A	With pull ring

Show filter

d₁ Pin -0,05/-0,25 Bore +0,1/+0,3	s	d₂ +0,3	d₃	d₄	h₁	h₂	l₁ ≈	l₂	l₃	l₄	l₅	m	A/F	Spring load in N ≈ initial	end

8	20	6,1	36	7	7,5	1,5	70	14	35	52	48	34	10	15	50
10	20	6,1	36	7	7,5	1,5	70	14	35	52	48	34	10	15	50
12	20	6,1	36	7	7,5	1,5	70	14	35	52	48	34	10	15	50
14	20	6,1	36	7	7,5	1,5	70	14	35	52	48	34	10	15	50
16	30	10,1	50	10	15	5	103	20	54	78	80	55	17	30	110
20	30	10,1	50	10	15	5	103	20	54	78	80	55	17	30	110

Filter combination produces no result.

Specification

Guide
Steel precision casting

zinc plated, blue passivatedZB
Zinc plated and powder coated
Black, RAL 9005, textured finishSW

Plunger pin / Pull ring
Steel
Zinc plated, blue passivated

Pressure spring
Stainless steel AISI 316 Ti

Grub screw DIN 915
Steel, zinc plated

Load Rating Information

Stainless Steel Characteristics

RoHS

Information

With indexing plungers GN 722.5, the plunger pin is actuated via the pull ring. This is done either manually, with a cable or by means of an extended pull rod with hook. The ZB and SW versions are designed for applications in steel construction.

The dimensional tolerances between the pin and the guide have been chosen to ensure functional reliability even in roughly dimensioned applications or in the event of soiling.

There are several options for fastening. The hexagonal mounting holes allow the use of socket cap screws DIN 912 and hexagon screws or nuts according to DIN 931 or DIN 934.
