Plastic

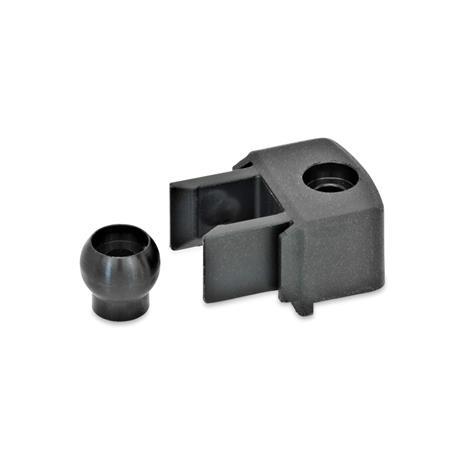

GN 450 Ball-Shaped Door Locks
ELESA original design BPS.
| b | d Ball-Ø | s1 min. | max. | s2 min. | max. | Holding force in N |
|---|---|---|---|---|---|---|
| 28 | 14 | 17,8 | 19,3 | 7,9 | 9,9 | 30 |
Filter combination produces no result.
Specification
Clamp
Plastic (Polyacetal POM)
Ball
Plastic (Polyamide PA)
RoHS
Plastic (Polyacetal POM)
- Temperature resistant up to 60 °C
- Black, matte finish
Ball
Plastic (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 60 °C
- Black, matte finish
RoHS
Accessory
Spacer GN 450.1Information
The ball-shaped door locks GN 450 have been conceived for the use with both shutter doors and sliding doors.
The ball-shaped door lock consists of a clamp to be fixed to a frame and a ball to be fixed to a door.
Under specific tests, the clamp showed constant performances for more than 20.000 cycles.
see also...
| How to order |
| ||||
GN 450-28-14 |
RoHS compliant:
-
-
Weight:
-
-
