Aluminum, with 2 Mounting Holes

GN 162.3 Base Plate Connector Clamps

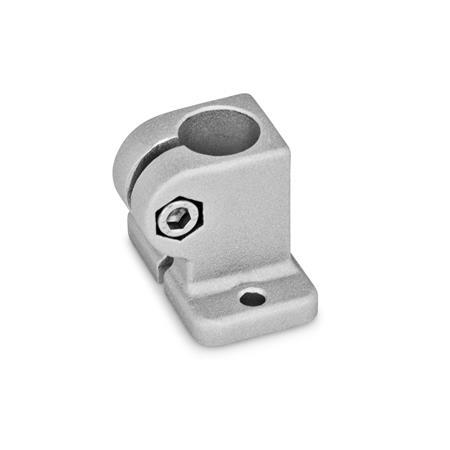

Base Plate Connector Clamps GN 162.3 thumbnail

Base Plate Connector Clamps GN 162.3 sketch

Identification no.

2	With stainless steel socket cap srew DIN 912

Show filter

d₁ Bore	d₂	k Clamping length	l₁	l₂	t	x₁	x₂	y	z Screw location

B 10	5,5	40	34,5	25	7	50	38	30	M6-20
B 12	5,5	40	34,5	25	7	50	38	30	M6-20
B 14	5,5	40	34,5	25	7	50	38	30	M6-20
B 15	5,5	40	34,5	25	7	50	38	30	M6-20
B 16	5,5	40	34,5	25	7	50	38	30	M6-20
B 18	5,5	40	34,5	25	7	50	38	30	M6-20

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

Overview to appropriate standards of the assembly sets GN 965

Overview to appropriate standards of the assembly sets GN 968

RoHS

Information

The clamping bore of base plate connector clamps GN 162.3 is mechanically machined and designed for GN 990 or DIN 2391, DIN 2395 and DIN 2462 construction tubes.

Base plate connector clamps GN 162.3 can also be mounted to profile systems.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
