Long Version, with Bolt

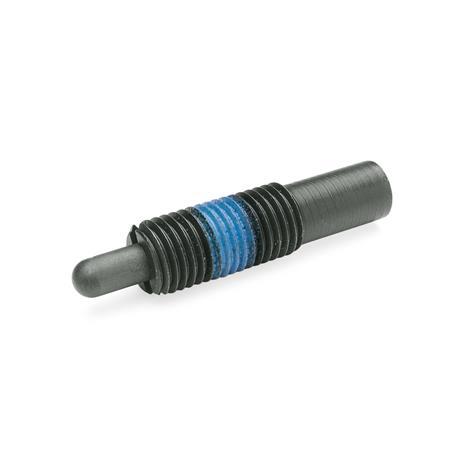

GN 611 Spring Plungers, Steel / Stainless Steel
Type
| L | Steel, standard spring load |
| LS | Steel, high spring load |
| LN | Stainless steel, standard spring load |
| LSN | Stainless steel, high spring load |
| d1 | w Stroke | d2 | d3 | l1 | l2 | A/F Internal hexagon | Spring load in N ≈ Standard (Type L / LN) Initial | End | Spring load in N ≈ High (Type LS / LSN) Initial | End | Code no. Screwdriver |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M 10 | 8 | 4 | 7,8 | 35 | 25 | 3 | 6 | 16 | 12 | 22 | GN 611.5-M10 |
| M 12 | 10 | 5,5 | 9,5 | 43 | 35 | 4 | 4 | 18 | 7 | 46 | GN 611.5-M12 |
| M 16 | 10 | 8 | 13,4 | 48 | 35 | 6 | 7 | 24 | 10 | 43 | GN 611.5-M16 |
| M 16 | 15 | 8 | 13,4 | 58 | 35 | 6 | 9 | 33 | 10 | 57 | GN 611.5-M16 |
| M 16 | 20 | 8 | 13,4 | 58 | 35 | 6 | 4 | 23 | - | - | GN 611.5-M16 |
| M 16 | 20 | 8 | 13,4 | 83 | 35 | 6 | - | - | 18 | 72 | GN 611.5-M16 |
| M 16 | 25 | 8 | 13,4 | 98 | 35 | 6 | 13 | 41 | 20 | 70 | GN 611.5-M16 |
| M 16 | 30 | 8 | 13,4 | 98 | 35 | 6 | 13 | 47 | 20 | 80 | GN 611.5-M16 |
| M 16 | 40 | 8 | 13,4 | 148 | 35 | 6 | 13 | 63 | 21 | 113 | GN 611.5-M16 |
| M 16 | 50 | 8 | 13,4 | 148 | 35 | 6 | 7 | 43 | 13 | 75 | GN 611.5-M16 |
| M 24 | 15 | 10 | 19,6 | 60 | 45 | 8 | 14 | 87 | 40 | 192 | GN 611.5-M24 |
Filter combination produces no result.
Specification
Type L / LS
Type LN / LSN
Pressure spring
Steel
Identification of type LS / LSN:
Housing with 2 longitudinal markings
RoHS
- Housing
Steel, blackened - Bolt
Steel, blackened
Case-hardened
Type LN / LSN
- Housing
Stainless steel AISI 303 - Bolt
Stainless steel AISI 303
Nitrided
Pressure spring
Steel
Identification of type LS / LSN:
Housing with 2 longitudinal markings
RoHS
Accessory
Screwdrivers GN 611.5(Code no. see table)
Information
Spring plungers GN 611 are used as ejectors, push-on and push-off operations in the sheet metal industry, as well as cushioners.
The slot on the plunger side is provided for blind hole application. A special screwdriver GN 611.5 is available (see table).
see also...
| How to order |
| ||||||
GN 611-M16-15-L |
