with L-Handle, Pin AISI 303

GN 113.11 Stainless Steel Ball Lock Pins

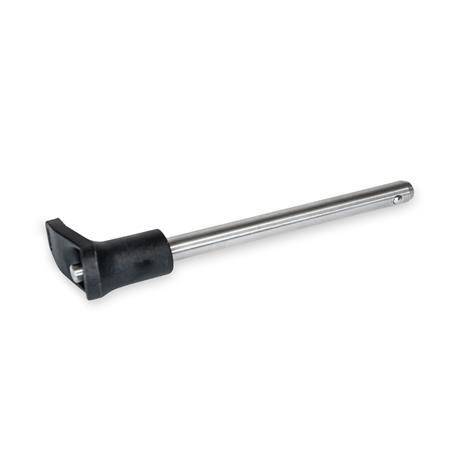

Stainless Steel Ball Lock Pins GN 113.11 thumbnail

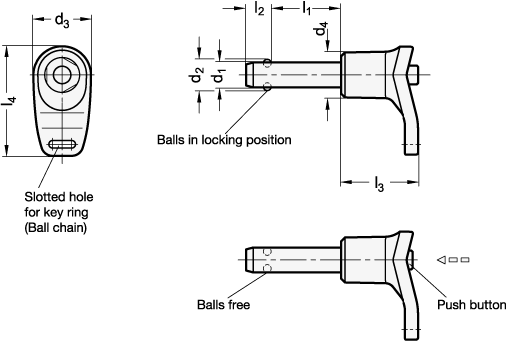

Stainless Steel Ball Lock Pins GN 113.11 sketch

Show filter

d₁ -0,04/-0,08	l₁ +0,6															d₂	d₃	d₄	l₂ ±1	l₃	l₄	Location bore H11

5	10	15	20	25	30	35	40	45	50	60	70	80	-	-	-	5,5	17,5	13,5	6	26,5	33	5
6	10	15	20	25	30	35	40	45	50	60	70	80	-	-	-	7	17,5	13,5	7	26,5	33	6
8	10	15	20	25	30	35	40	45	50	60	70	80	90	100	-	9,5	23	18	8,2	34	43,5	8
10	15	20	25	30	35	40	45	50	60	70	80	90	100	110	120	12	23	18	9,6	34	43,5	10
12	20	25	30	35	40	45	50	60	70	80	90	100	110	120	-	14,5	30,5	24	10,6	40,5	58	12
16	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	19	30,5	24	14	40,5	58	16
20	50	60	70	80	90	100	110	120	130	140	150	-	-	-	-	25	40,5	33	20,5	51,5	72,5	20
25	50	60	70	80	90	100	110	120	130	140	150	-	-	-	-	30,8	40,5	33	22	51,5	72,5	25

Filter combination produces no result.

Specification

Pin
Stainless steel AISI 303

L-Handle
Plastic (Polyamide PA), black
Temperature resistant up to 80 °C

Balls
Stainless steel AISI 420C

Pressure spring
Stainless steel
German Material No. 1.4565

Application Video Locking Pins with Ball Lock

Load Capacity of Ball Lock Pins / Locking Pins

Plastic Characteristics

Stainless Steel Characteristics

RoHS

Accessory

Ball Chains GN 111 / GN 111.5

Retaining Cables GN 111.2

Spiral Retaining Cables GN 111.4

Information

Stainless steel ball lock pins GN 113.11 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
