Aluminium

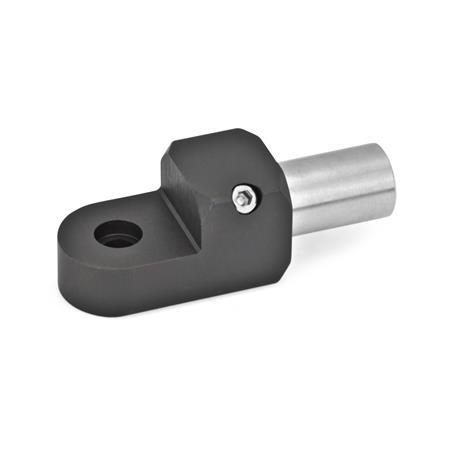

GN 483 T-Swivel Mounting Clamps

T Swivel Mounting Clamps GN 483 thumbnail

Type

A	with Bore
W	with Bolt

Show filter

d₁ Type A	d₂ Type W	k	d₃	d₄ Swivel bore	d₅	l₁	l₂	l₃	l₄	l₅	l₆	t	Clamping kit for d₄ Type S	Clamping kit for d₄ Type K

B 8	8	16	7	4,5	M 4	30	22	13	8	5,5	16	8	GN 511.1-M4-16-S	GN 511.1-M4-16-K
B 10	10	20	8,5	5,5	M 5	38	28	17	10	7	17	10	GN 511.1-M5-20-S	GN 511.1-M5-20-K
B 12	12	20	8,5	5,5	M 5	38	28	17	10	8	19	12	GN 511.1-M5-20-S	GN 511.1-M5-20-K
B 15	15	25	10	6,5	M 6	46	33,5	20	12,5	10	21	15	GN 511.1-M6-25-S	GN 511.1-M6-25-K
B 16	16	25	10	6,5	M 6	46	33,5	20	12,5	11	24	16	GN 511.1-M6-25-S	GN 511.1-M6-25-K
B 20	20	30	10	6,5	M 6	55	40	24	15	12	26	18	GN 511.1-M6-30-S	GN 511.1-M6-30-K

Filter combination produces no result.

Specification

Aluminum

Matte, groundMT
Anodized blackELS

Bolt (Type W)
Steel, zinc plated, blue chromated finish

Grub screw DIN 913 (Type A)
Stainless steel AISI 304

Grub screw DIN 915 (Type W)
Stainless steel AISI 304

Stainless Steel Characteristics

RoHS

Accessory

Clamping Kits GN 511.1

Information

T-swivel mounting clamps GN 483 can be combined with swivel mounting clamps GN 482, attachment swivel mounting clamps GN 484 as well as base plate swivel mounting clamps GN 485 with the same k dimensions to clamp connector joints. Clamping kits GN 511.1 with screw (type S) and with adjustable hand lever (type K) are available for this purpose (article code see table of dimensions).
