for Adjustable Slides GN 900
GN 900.2 Connecting Sets X-Y

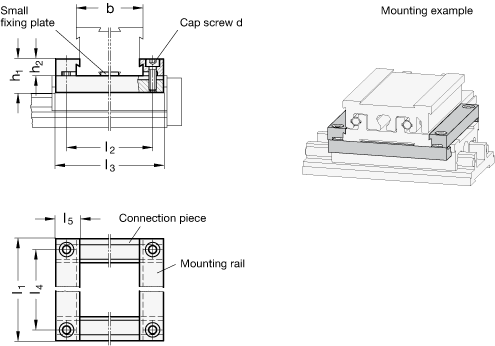

| b Size of the slide | l1 | d Socket head cap screw DIN 912 | h1 | h2 | l2 | l3 | l4 | l5 |
|---|---|---|---|---|---|---|---|---|
| 30 | 41 | M 2,5 | 8,4 | 4,2 | 35,4 | 41 | 35,4 | 6,5 |
| 50 | 67 | M 3 | 14 | 7 | 58 | 67 | 58 | 10 |
| 80 | 105 | M 4 | 25 | 12,5 | 92 | 105 | 92 | 14,5 |
| 120 | 145 | M 5 | 27,6 | 13,8 | 131,8 | 145 | 131,8 | 14,5 |
Filter combination produces no result.
Specification
Aluminum
Anodized, natural color
Socket head cap screw DIN 912
Stainless steel
RoHS
Anodized, natural color
Socket head cap screw DIN 912
Stainless steel
RoHS
Information

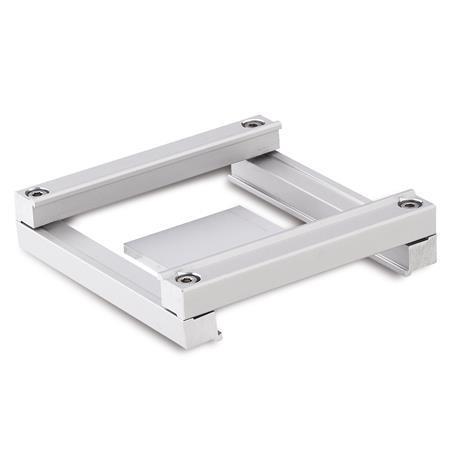

With connecting sets GN 900.2 two adjustable slide units GN 900 can be combined to produce an X-Y axis configuration.
This combination is achieved with a clamping system which eliminates the use of any kind of fixing holes in the slide.
The stationary base of the second adjustable slide unit is clamped on to the slide of the first unit to give the X-Y configuration. The slides on both units together give the X-Y movement.
The small fixing plate serves for the 90° alignment and fine adjustment of the X-Y axis configuration.
All parts required to make up a set are included.
| How to order |
| ||||
GN 900.2-50-67 |
