Conical, for Guide Bushings GN 172.1 / GN 179.1

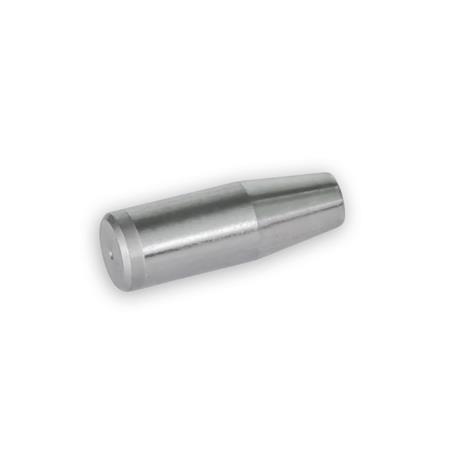

GN 771.2 Guide Pins
| d p6 | l1 ±0,1 | l2 ±0,1 | l3 |
|---|---|---|---|
| 6 | 19,5 | 7,5 | 1,5 |
| 8 | 23,5 | 9,5 | 2 |
| 10 | 27,5 | 11,5 | 2 |
Filter combination produces no result.
Specification
Accessory
Guide Bushings GN 172.1 / GN 179.1Information
Guide pins GN 771.2 are used in combination with GN 172.1 / GN 179.1 guide bushings.
The shaft tolerance p6 guarantees a perfect pressfit in a mounting borehole H7. The spigot l3 makes the installation easier.
| How to order |
| ||||||
GN 771.2-10-27,5-11,5 |
