for Angular / T-Gears
GN 298 Housings
Form
| W | Housing for angular gears |

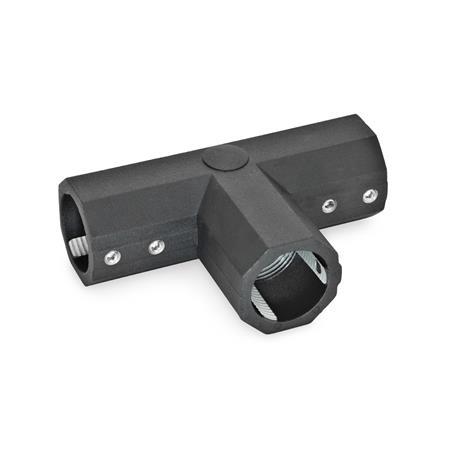

| T | Housing for T-gears |
| s | d Bore for linear actuator / transfer unit | l1 | l2 |
|---|---|---|---|
| 28 | B 18 | 60 | 90 |
| 40 | B 30 | 84 | 126 |
| 50 | B 40 | 108 | 162 |
| 60 | B 50 | 128 | 190 |
Filter combination produces no result.
Specification
Aluminum gravity die casting
Powder coated
Black, RAL 9005, textured finishSW
Thrust screws
Stainless steel
RoHS
Powder coated
Black, RAL 9005, textured finishSW
Thrust screws
Stainless steel
RoHS
Information
Housings GN 298 for angular / T-gears are used in connection with bevel gear wheels GN 297 and linear actuators / transfer units GN 391. The angular / T-gears are designed to deflect the rotary movement of a linear actuator / transfer unit by 90°.
An operating instruction with more details and specifications is included with every delivery.
