Plastic

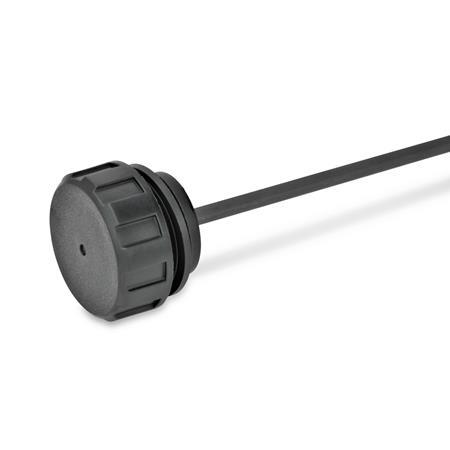

GN 548.1 Plugs, with / without dipstick
ELESA Original design T.440
Type
| A | Without dipstick |
| B | With dipstick |
| d1 | d2 | l1 | l2 | l3 |
|---|---|---|---|---|
| G 1/4 | 20,5 | 9 | 19 | 192 |
| G 3/8 | 25 | 9 | 21 | 192 |
| G 1/2 | 28 | 11 | 25 | 189 |
| G 3/4 | 34 | 12 | 27 | 188 |
| G 1 | 42 | 13 | 29 | 188 |
| G 1 1/4 | 52 | 13 | 32 | 185 |
| G 1 1/2 | 57 | 13 | 35 | 185 |
Filter combination produces no result.
Specification
Plastic (Polyamide PA)
Seal
Rubber NBR (Perbunan®)
Dipstick
Steel, phosphated
RoHS
- Temperature resistant up to 100 °C
- Black, matte finish
Seal
Rubber NBR (Perbunan®)
Dipstick
Steel, phosphated
RoHS
On request
Fluid level markings / special lengths
see GN 109
see GN 109
Information
From thread size G½ upwards, the seal of the plugs GN 548.1 is embedded in a radial undercut. For this reason the seal cannot be extruded when tightening the plug.
MAX-MIN lines can easily be marked on the two flat sides of the dipstick (see GN 109).
| How to order |
| ||||
GN 548.1-G1/2-B |
