Aluminum, with 2 Mounting Holes
GN 146.13 Flanged Linear Actuator Connectors
Identification no.
| 2 | With stainless steel socket cap srew DIN 912 |
| d1 without sleeve bearing | with sleeve bearing | k Clamping length | d2 | d3 Mounting screws on the drive key | l1 | l2 | m | t | x | y1 | y2 | z Screw location | Accessory Recom. hand lever GN 911 for z l3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B 30 | G 30 | 40 | 6,5 | M 4 | 62 | 40 | 30 | 7 | 52 | 70 | 53 | M8-25 | 63 | 78 |
| B 30 | G 30 | 56 | 8,5 | M 4 | 83 | 56 | 42 | 10 | 78 | 108 | 82 | M10-35 | - |
| B 40 | G 40 | 56 | 8,5 | M 5 | 83 | 56 | 42 | 10 | 78 | 108 | 82 | M10-35 | 78 | 92 |
Filter combination produces no result.
Specification
Aluminum
Powder coated
Black, RAL 9005, textured finishSW
Sleeve bearing
Plastic (PTFE)
Socket cap screws DIN 912
Stainless Steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Powder coated
Black, RAL 9005, textured finishSW
Sleeve bearing
Plastic (PTFE)
Socket cap screws DIN 912
Stainless Steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Accessory
Adjustable Hand Levers GN 911Information

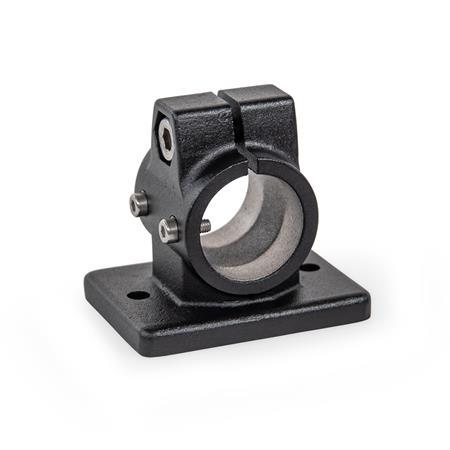

Flanged linear actuator connectors GN 146.13 are based on flanged connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.
With the screw location z, the play of the guide bores d1 can be adjusted or the linear actuator connectors can be clamped after adjustment.
For quick clamping without tools, the socket cap screw can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
| How to order |
| ||||||||
GN 146.13-G30-56-2-SW |
RoHS compliant:
-
-
Weight:
-
-
