with Thrust point

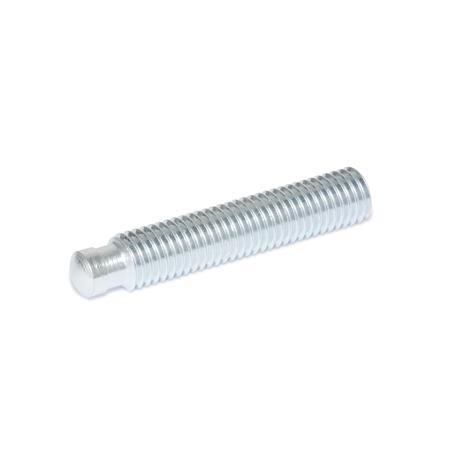

DIN 6332 Grub Screws, Steel, zinc plated
Type
| SKN | With thrust point, not hardened |
| d1 | Length l | d2 h11 | d3 | e1 ≈ | e3 ≈ | A/F | z1 ≈ | z2 ≈ | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M 10 | 45 | 55 | 65 | 80 | - | 8 | 7,2 | 3,6 | - | 5 | 9 | 4,5 |
| M 12 | 50 | 60 | 70 | 80 | 100 | 8 | 7,2 | 4,6 | 3,7 | 6 | 10 | 4,5 |
| M 16 | 65 | 70 | 80 | 100 | 125 | 12 | 11 | 5,4 | 4 | 8 | 12 | 5 |
| M 20 | 90 | 100 | 125 | 150 | - | 15,5 | 14,4 | 5,5 | 4,3 | 10 | 14 | 5,5 |
Filter combination produces no result.
Specification
Steel
Property class 5.8
Thrust point unhardenedZinc plated, blue passivatedZB
RoHS
Property class 5.8
Thrust point unhardenedZinc plated, blue passivatedZB
RoHS
Information
The thrust point of the grub screws DIN 6332 is designed to be used with or without the thrust pad for clamping.
The pin diameter of the grub screws is smaller than the core diameter of the thread, allowing them to be screwed in on the pin side.
The snap ring resp. snap spring of the thrust pad is a simple and quick method to connect the thrust pad to the grub screw.
| How to order |
| ||||||||
DIN 6332-M16-80-SKN-ZB |
